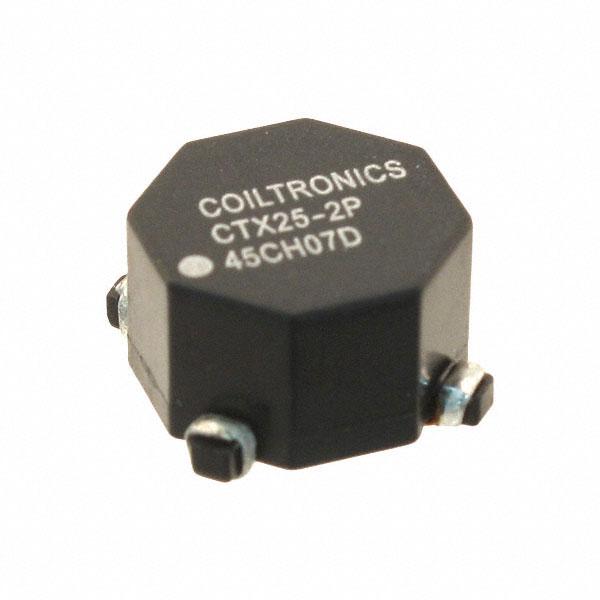

Eaton - Electronics Division CTX25-2P-R

CTX25-2P-R Eaton - Electronics Division
Eaton - Electronics Division

Product Information

Ratings:
-
HTSUS:
8504.50.4000
RoHS Status:
ROHS3 Compliant
Number of Coils:
2
Operating Temperature:
-40°C ~ 85°C
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Package / Case:
Nonstandard
Tolerance:
±20%
DC Resistance (DCR) - Series:
436mOhm Max
Shielding:
Unshielded
REACH Status:
REACH Unaffected
edacadModel:
CTX25-2P-R Models
edacadModelUrl:
/en/models/1021426
Manufacturer:
Eaton - Electronics Division
Inductance - Connected In Series:
99.14 µH
Size / Dimension:
0.450" L x 0.450" W (11.43mm x 11.43mm)
Inductance - Connected In Parallel:
24.79 µH
standardLeadTime:
13 Weeks
Current Rating - Parallel:
1.4 A
Mounting Type:
Surface Mount
Series:
Econo-Pac™
DC Resistance (DCR) - Parallel:
109mOhm Max
Height:
0.235" (5.97mm)
Packaging:
Tape & Reel (TR)
Current Rating - Series:
700 mA
ECCN:
EAR99
Checking for live stock

This is manufactured by Eaton - Electronics Division. The manufacturer part number is CTX25-2P-R. It is assigned with possible HTSUS value of 8504.50.4000. The product is rohs3 compliant. It consists of 2 coils. The product has -40°c ~ 85°c operating temperature range. Its typical moisture sensitivity level is 1 (unlimited). Moreover, the product comes in nonstandard. It features ±20% of tolerance value. Features 436mohm max DCR. Furthermore, the product is shielded with unshielded. In addition, it is reach unaffected. The eaton - electronics division's product offers user-desired applications. While the series connected inductance is 99.14 µh. The product's diameters include 0.450" l x 0.450" w (11.43mm x 11.43mm). It has [Inductance - Connected in Parallel] inductance at parallel connection. It has a long 13 weeks standard lead time. It features 1.4 a of parallel current rating. The product is available in surface mount configuration. The product econo-pac™, is a highly preferred choice for users. It has 109mohm max parallel DC resistance. In addition, the height is 0.235" (5.97mm). In addition, tape & reel (tr) is the available packaging type of the product. The series current rated with 700 ma. The product is designated with the ear99 code number.
