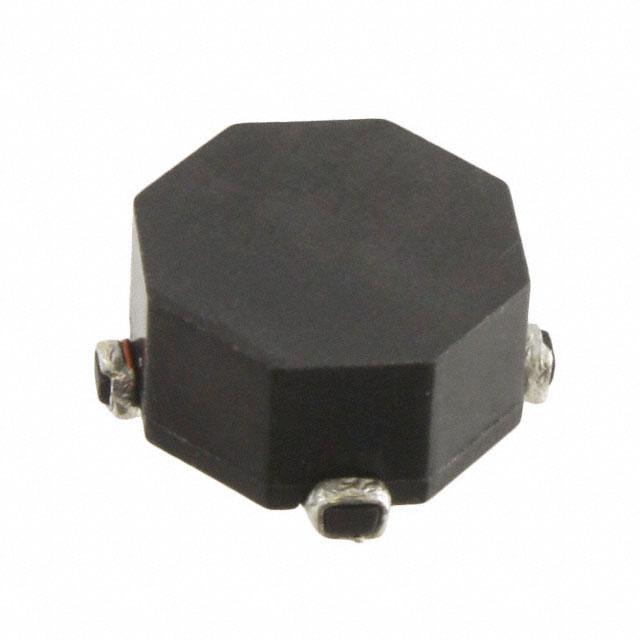

Eaton - Electronics Division CTX10-4P-R

CTX10-4P-R Eaton - Electronics Division
CTX10-4P-R
Eaton - Electronics Division

Product Information

Ratings:
-
HTSUS:
8504.50.4000
RoHS Status:
ROHS3 Compliant
Number of Coils:
2
Operating Temperature:
-40°C ~ 85°C
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Package / Case:
Nonstandard
Tolerance:
±20%
DC Resistance (DCR) - Series:
187mOhm Max
Shielding:
Unshielded
title:
CTX10-4P-R
edacadModel:
CTX10-4P-R Models
edacadModelUrl:
/en/models/953560
Manufacturer:
Eaton - Electronics Division
Inductance - Connected In Series:
39.53 µH
Size / Dimension:
0.550" L x 0.550" W (13.97mm x 13.97mm)
Inductance - Connected In Parallel:
9.88 µH
standardLeadTime:
13 Weeks
Current Rating - Parallel:
2.5 A
Mounting Type:
Surface Mount
Series:
Econo-Pac™
DC Resistance (DCR) - Parallel:
47mOhm Max
Height:
0.250" (6.35mm)
Packaging:
Tape & Reel (TR)
Current Rating - Series:
1.25 A
ECCN:
EAR99
Checking for live stock

This is manufactured by Eaton - Electronics Division. The manufacturer part number is CTX10-4P-R. It is assigned with possible HTSUS value of 8504.50.4000. The product is rohs3 compliant. It consists of 2 coils. The product has -40°c ~ 85°c operating temperature range. Its typical moisture sensitivity level is 1 (unlimited). Moreover, the product comes in nonstandard. It features ±20% of tolerance value. Features 187mohm max DCR. Furthermore, the product is shielded with unshielded. The eaton - electronics division's product offers user-desired applications. While the series connected inductance is 39.53 µh. The product's diameters include 0.550" l x 0.550" w (13.97mm x 13.97mm). It has [Inductance - Connected in Parallel] inductance at parallel connection. It has a long 13 weeks standard lead time. It features 2.5 a of parallel current rating. The product is available in surface mount configuration. The product econo-pac™, is a highly preferred choice for users. It has 47mohm max parallel DC resistance. In addition, the height is 0.250" (6.35mm). In addition, tape & reel (tr) is the available packaging type of the product. The series current rated with 1.25 a. The product is designated with the ear99 code number.

pdf icon
Coiltronics Magnetics Facility 31/Aug/2013(PCN Assembly/Origin)
pdf icon
CTX Series ECONO-PAC, OCTA-PAC/PLUS(Datasheets)
pdf icon
Shipping Box and Labels 05/Jan/2018(PCN Packaging)
