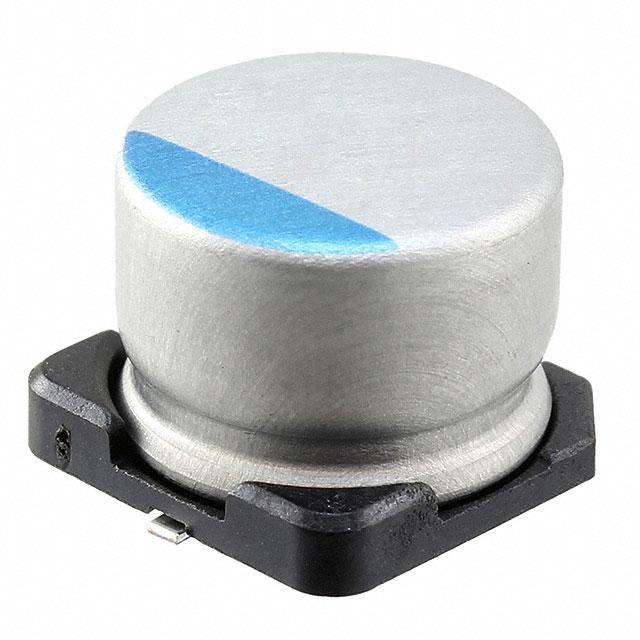

Nichicon PCR1H820MCL1GS

PCR1H820MCL1GS Nichicon
Nichicon

Product Information

Ratings:
AEC-Q200
HTSUS:
8532.22.0020
RoHS Status:
ROHS3 Compliant
ESR (Equivalent Series Resistance):
34mOhm
Capacitance:
82 µF
Operating Temperature:
-55°C ~ 125°C
Package / Case:
Radial, Can - SMD
Tolerance:
±20%
Voltage - Rated:
50 V
Height - Seated (Max):
0.315" (8.00mm)
title:
PCR1H820MCL1GS
Type:
Polymer
REACH Status:
REACH Affected
edacadModel:
PCR1H820MCL1GS Models
Applications:
Automotive
Surface Mount Land Size:
0.406" L x 0.406" W (10.30mm x 10.30mm)
edacadModelUrl:
/en/models/4694699
Manufacturer:
Nichicon
Size / Dimension:
0.394" Dia (10.00mm)
standardLeadTime:
21 Weeks
Mounting Type:
Surface Mount
Series:
PCR
Packaging:
Tape & Reel (TR)
Ripple Current @ High Frequency:
1.9 A @ 100 kHz
Lifetime @ Temp.:
4000 Hrs @ 125°C
Lead Spacing:
-
ECCN:
EAR99
Checking for live stock

This is manufactured by Nichicon. The manufacturer part number is PCR1H820MCL1GS. It is rated with aec-q200. It is assigned with possible HTSUS value of 8532.22.0020. The product is rohs3 compliant. It carries ESR (Equivalent Series Resistance) of 34mohm. It provides a 82 µf of capacitance value. The product has -55°c ~ 125°c operating temperature range. Moreover, the product comes in radial, can - smd. It features ±20% of tolerance value. It also exhibits voltage rating of 50 v. It has the maximum seated height of 0.315" (8.00mm). It comes in polymer configuration. In addition, it is reach affected. The product is widely employed in automotive. It has typical surface-mount land sizes, such as 0.406" l x 0.406" w (10.30mm x 10.30mm). The nichicon's product offers user-desired applications. The product's diameters include 0.394" dia (10.00mm). It has a long 21 weeks standard lead time. The product is available in surface mount configuration. The product pcr, is a highly preferred choice for users. In addition, tape & reel (tr) is the available packaging type of the product. Additionally, it carries a ripple current and high frequency of 1.9 a @ 100 khz. This product offers longer life span for 4000 hrs @ 125°c. The product is designated with the ear99 code number.
