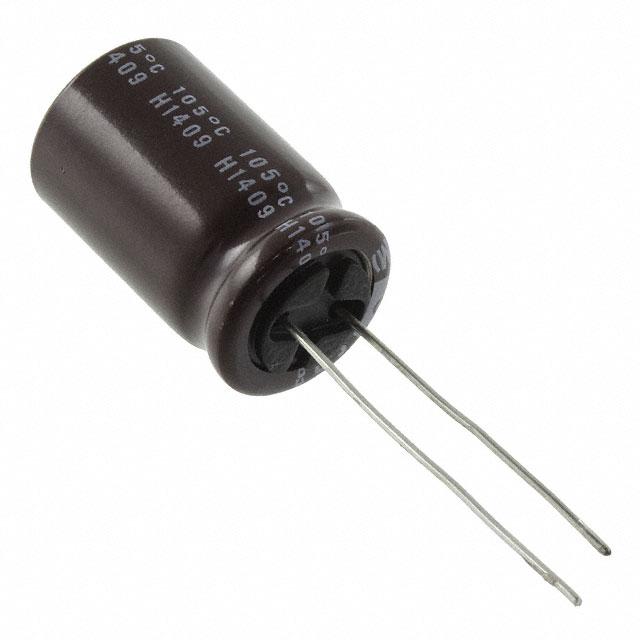

Nichicon ULD2W150MHD1TO
Product Information
Diameter:
12.5mm
Ripple Current:
140mA
Dimensions:
12.5 (Dia.) x 20mm
Mounting Type:
Through Hole
Series:
LD
Capacitance:
15µF
Length:
20mm
Voltage:
450V dc
Leakage Current:
100 μA
Lifetime:
20000h
Lead Pitch:
5mm
Maximum Operating Temperature:
+105°C
Tolerance:
±20%
Minimum Operating Temperature:
-25°C
Technology:
Electrolytic
Ratings:
-
HTSUS:
8532.22.0020
RoHS Status:
ROHS3 Compliant
ESR (Equivalent Series Resistance):
-
Polarization:
Polar
Capacitance:
15 µF
Operating Temperature:
-40°C ~ 105°C
Package / Case:
Radial, Can
Tolerance:
±20%
Voltage - Rated:
450 V
Height - Seated (Max):
0.866" (22.00mm)
Ripple Current @ High Frequency:
252 mA @ 100 kHz
REACH Status:
REACH Affected
Ripple Current @ Low Frequency:
140 mA @ 120 Hz
edacadModel:
ULD2W150MHD1TO Models
Applications:
General Purpose
Surface Mount Land Size:
-
edacadModelUrl:
/en/models/4695294
Package:
Cut Tape (CT)
Size / Dimension:
0.492" Dia (12.50mm)
Moisture Sensitivity Level (MSL):
Not Applicable
Mounting Type:
Through Hole
Series:
ULD
Lifetime @ Temp.:
20000 Hrs @ 105°C
Lead Spacing:
0.197" (5.00mm)
ECCN:
EAR99
Checking for live stock
FAQs
Yes. You can also search ULD2W150MHD1TO on website for other similar products.
We accept all major payment methods for all products including ET12073809. Please check your shopping cart at the time of order.
You can order Nichicon brand products with ULD2W150MHD1TO directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in Aluminum Electrolytic Capacitors category are shipped in lowest possible time.
You will get a confirmation email regarding your order of Nichicon ULD2W150MHD1TO. You can also check on our website or by contacting our customer support team for further order details on Nichicon ULD2W150MHD1TO.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET12073809 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "Nichicon" products on our website by using Enrgtech's Unique Manufacturing Part Number ET12073809.
Yes. We ship ULD2W150MHD1TO Internationally to many countries around the world.
This is manufactured by Nichicon. The manufacturer part number is ULD2W150MHD1TO. Its diameter is 12.5mm. Furthermore, 140ma is the ripple current. The given dimensions of the product include 12.5 (dia.) x 20mm. The product is available in through hole configuration. The product ld, is a highly preferred choice for users. It provides a 15µf of capacitance value. Its accurate length is 20mm. It carries a 450v dc of voltage. It harbors 100 μa of leakage current. It provides a long-lasting service for a period of 20000h. The lead features 5mm pitch. It has a maximum operating temperature of +105°c. It features ±20% of tolerance value. Whereas, the minimum operating temperature of the product is -25°c. This product use electrolytic technology. It is assigned with possible HTSUS value of 8532.22.0020. The product is rohs3 compliant. The product features a [Ploarization] polarity. It provides a 15 µf of capacitance value. The product has -40°c ~ 105°c operating temperature range. Moreover, the product comes in radial, can. It also exhibits voltage rating of 450 v. It has the maximum seated height of 0.866" (22.00mm). Additionally, it carries a ripple current and high frequency of 252 ma @ 100 khz. In addition, it is reach affected. Its ripple current at low frequency is 140 ma @ 120 hz. The product is widely employed in general purpose. It is shipped in cut tape (ct) package . The product's diameters include 0.492" dia (12.50mm). Its typical moisture sensitivity level is not applicable. The product uld, is a highly preferred choice for users. This product offers longer life span for 20000 hrs @ 105°c. It is assigned with 0.197" (5.00mm) of lead spacing. The product is designated with the ear99 code number.
