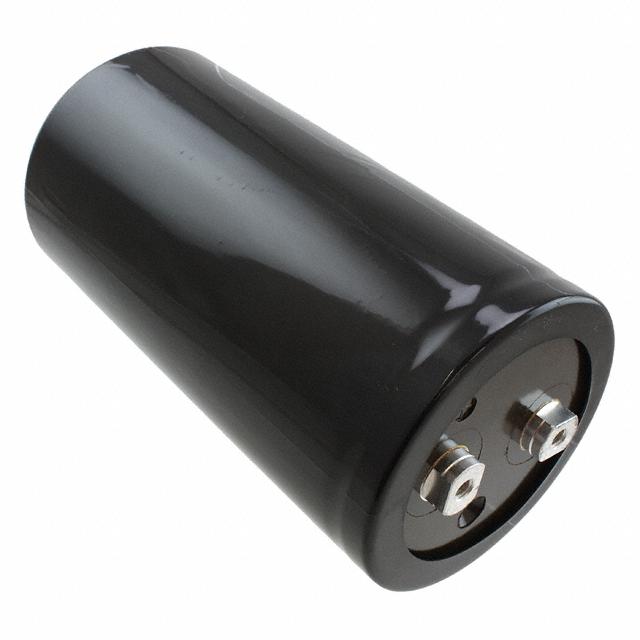

KEMET ALS30A332NP500
Product Information
Diameter:
77mm
Ripple Current:
15.3 A @ 100 Hz, 22.6 A @ 10 kHz
Polarised:
Polar
Dimensions:
77 (Dia.) x 146mm
Mounting Type:
Screw Terminal
Series:
ALS30
Equivalent Series Resistance:
54mΩ
Height:
146mm
Capacitance:
3300µF
Length:
146mm
Voltage:
500V dc
Leakage Current:
6 mA
Lifetime:
20000 h @ +85 °C/500V dc/Ir, 40000 h @ +85 °C/500V dc
Lead Pitch:
31.8mm
Maximum Operating Temperature:
+85°C
Tolerance:
±20%
Minimum Operating Temperature:
-40°C
Technology:
Aluminium Electrolytic
Ratings:
-
HTSUS:
8532.22.0085
RoHS Status:
ROHS3 Compliant
ESR (Equivalent Series Resistance):
54mOhm @ 100Hz
Polarization:
Polar
Capacitance:
3300 µF
Operating Temperature:
-40°C ~ 85°C
Package / Case:
Radial, Can - Screw Terminals
Tolerance:
±20%
Voltage - Rated:
500 V
Height - Seated (Max):
5.827" (148.00mm)
Ripple Current @ High Frequency:
22.6 A @ 10 kHz
REACH Status:
REACH Unaffected
Ripple Current @ Low Frequency:
15.3 A @ 100 Hz
edacadModel:
ALS30A332NP500 Models
Applications:
General Purpose
Surface Mount Land Size:
-
edacadModelUrl:
/en/models/3462159
Impedance:
39 mOhms
Package:
Bulk
Size / Dimension:
3.032" Dia (77.00mm)
standardLeadTime:
38 Weeks
Moisture Sensitivity Level (MSL):
Not Applicable
Mounting Type:
Chassis Mount
Series:
ALS30
Lifetime @ Temp.:
20000 Hrs @ 85°C
Lead Spacing:
1.252" (31.80mm)
Base Product Number:
ALS30A
ECCN:
EAR99
Checking for live stock
FAQs
Yes. You can also search ALS30A332NP500 on website for other similar products.
We accept all major payment methods for all products including ET11933436. Please check your shopping cart at the time of order.
You can order KEMET brand products with ALS30A332NP500 directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in Aluminum Electrolytic Capacitors category are shipped in lowest possible time.
You will get a confirmation email regarding your order of KEMET ALS30A332NP500. You can also check on our website or by contacting our customer support team for further order details on KEMET ALS30A332NP500.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET11933436 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "KEMET" products on our website by using Enrgtech's Unique Manufacturing Part Number ET11933436.
Yes. We ship ALS30A332NP500 Internationally to many countries around the world.
This is manufactured by KEMET. The manufacturer part number is ALS30A332NP500. Its diameter is 77mm. Furthermore, 15.3 a @ 100 hz, 22.6 a @ 10 khz is the ripple current. Furthermore, it is polar polarised. The given dimensions of the product include 77 (dia.) x 146mm. The product is available in screw terminal configuration. The product als30, is a highly preferred choice for users. It has 54mω equivalent series resistance. In addition, the height is 146mm. It provides a 3300µf of capacitance value. Its accurate length is 146mm. It carries a 500v dc of voltage. It harbors 6 ma of leakage current. It provides a long-lasting service for a period of 20000 h @ +85 °c/500v dc/ir, 40000 h @ +85 °c/500v dc. The lead features 31.8mm pitch. It has a maximum operating temperature of +85°c. It features ±20% of tolerance value. Whereas, the minimum operating temperature of the product is -40°c. This product use aluminium electrolytic technology. It is assigned with possible HTSUS value of 8532.22.0085. The product is rohs3 compliant. It carries ESR (Equivalent Series Resistance) of 54mohm @ 100hz. The product features a [Ploarization] polarity. It provides a 3300 µf of capacitance value. The product has -40°c ~ 85°c operating temperature range. Moreover, the product comes in radial, can - screw terminals. It also exhibits voltage rating of 500 v. It has the maximum seated height of 5.827" (148.00mm). Additionally, it carries a ripple current and high frequency of 22.6 a @ 10 khz. In addition, it is reach unaffected. Its ripple current at low frequency is 15.3 a @ 100 hz. The product is widely employed in general purpose. It has an impedance value of 39 mohms. It is shipped in bulk package . The product's diameters include 3.032" dia (77.00mm). It has a long 38 weeks standard lead time. Its typical moisture sensitivity level is not applicable. The product is available in chassis mount configuration. This product offers longer life span for 20000 hrs @ 85°c. It is assigned with 1.252" (31.80mm) of lead spacing. Moreover, it corresponds to als30a, a base product number of the product. The product is designated with the ear99 code number.
