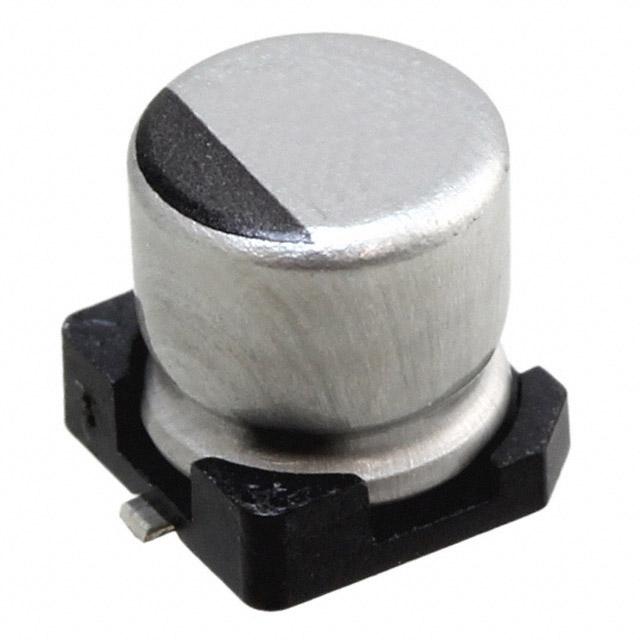

Nichicon UWG1C220MCL1GB
Product Information
Diameter:
5mm
Ripple Current:
95mA
Dimensions:
5 (Dia.) x 5.4mm
Mounting Type:
Surface Mount
Tolerance Plus:
20%
Series:
WG
Minimum Operating Temperature:
-55°C
Height:
5.4mm
Capacitance:
22 µF
Tolerance Minus:
-20%
Construction:
Cylindrical
Voltage:
16 V dc
Leakage Current:
3 μA
Lifetime:
1000h
Maximum Operating Temperature:
+105°C
Tolerance:
±20%
Technology:
Electrolytic
Ratings:
AEC-Q200
HTSUS:
8532.22.0020
RoHS Status:
ROHS3 Compliant
ESR (Equivalent Series Resistance):
-
Polarization:
-
Capacitance:
22 µF
Operating Temperature:
-55°C ~ 105°C
Package / Case:
Radial, Can - SMD
Tolerance:
±20%
Voltage - Rated:
16 V
Height - Seated (Max):
0.213" (5.40mm)
Ripple Current @ High Frequency:
95 mA @ 100 kHz
REACH Status:
REACH Unaffected
Ripple Current @ Low Frequency:
47.5 mA @ 120 Hz
edacadModel:
UWG1C220MCL1GB Models
Applications:
General Purpose
Surface Mount Land Size:
0.209" L x 0.209" W (5.30mm x 5.30mm)
edacadModelUrl:
/en/models/2550694
Impedance:
1.8 Ohms
Package:
Tape & Reel (TR)
Size / Dimension:
0.197" Dia (5.00mm)
standardLeadTime:
24 Weeks
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Mounting Type:
Surface Mount
Series:
UWG
Lifetime @ Temp.:
1000 Hrs @ 105°C
Lead Spacing:
-
ECCN:
EAR99
Checking for live stock
FAQs
Yes. You can also search UWG1C220MCL1GB on website for other similar products.
We accept all major payment methods for all products including ET11731157. Please check your shopping cart at the time of order.
You can order Nichicon brand products with UWG1C220MCL1GB directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in Aluminum Electrolytic Capacitors category are shipped in lowest possible time.
You will get a confirmation email regarding your order of Nichicon UWG1C220MCL1GB. You can also check on our website or by contacting our customer support team for further order details on Nichicon UWG1C220MCL1GB.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET11731157 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "Nichicon" products on our website by using Enrgtech's Unique Manufacturing Part Number ET11731157.
Yes. We ship UWG1C220MCL1GB Internationally to many countries around the world.
This is manufactured by Nichicon. The manufacturer part number is UWG1C220MCL1GB. Its diameter is 5mm. Furthermore, 95ma is the ripple current. The given dimensions of the product include 5 (dia.) x 5.4mm. The product is available in surface mount configuration. It features a given value of 20% tolerance plus. The product wg, is a highly preferred choice for users. Whereas, the minimum operating temperature of the product is -55°c. In addition, the height is 5.4mm. It provides a 22 µf of capacitance value. While it has tolerance minus of -20%. The product has been well-designed with cylindrical construction. It carries a 16 v dc of voltage. It harbors 3 μa of leakage current. It provides a long-lasting service for a period of 1000h. It has a maximum operating temperature of +105°c. It features ±20% of tolerance value. This product use electrolytic technology. It is rated with aec-q200. It is assigned with possible HTSUS value of 8532.22.0020. The product is rohs3 compliant. The product has -55°c ~ 105°c operating temperature range. Moreover, the product comes in radial, can - smd. It also exhibits voltage rating of 16 v. It has the maximum seated height of 0.213" (5.40mm). Additionally, it carries a ripple current and high frequency of 95 ma @ 100 khz. In addition, it is reach unaffected. Its ripple current at low frequency is 47.5 ma @ 120 hz. The product is widely employed in general purpose. It has typical surface-mount land sizes, such as 0.209" l x 0.209" w (5.30mm x 5.30mm). It has an impedance value of 1.8 ohms. It is shipped in tape & reel (tr) package . The product's diameters include 0.197" dia (5.00mm). It has a long 24 weeks standard lead time. Its typical moisture sensitivity level is 1 (unlimited). The product uwg, is a highly preferred choice for users. This product offers longer life span for 1000 hrs @ 105°c. The product is designated with the ear99 code number.
