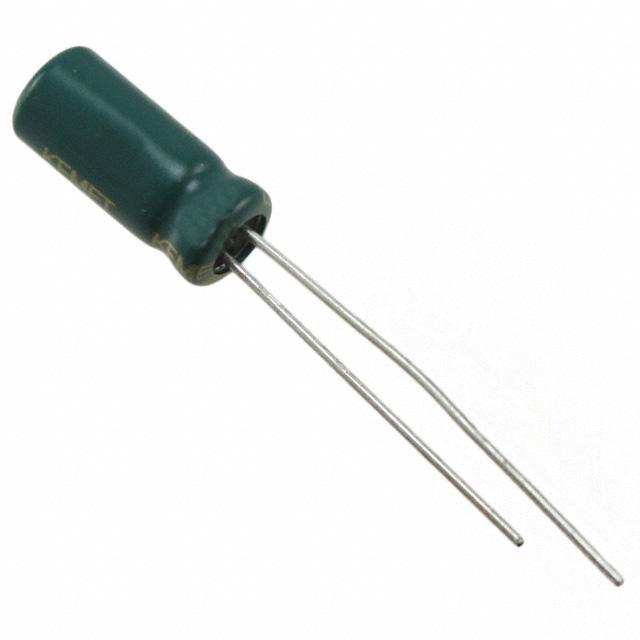

KEMET ESC106M035AC3AA
Product Information
Dimensions:
5 x 11mm
Lead Length:
20mm
Dissipation Factor:
0.1
Capacitance:
10 µF
Tolerance:
±20%
Dielectric Material Family:
Aluminium Electrolytic
Construction:
Aluminium Can
Maximum Operating Temperature:
+105°C
Tolerance Plus:
+20%
Lead Diameter:
0.5mm
Length:
11mm
Equivalent Series Resistance:
900mΩ
Leakage Current:
3.5 μA
Lead Pitch:
2mm
Package/Case:
Can - Single-Ended, Radial
Diameter:
5mm
Ripple Current:
140mA
Mounting Type:
Through Hole
Series:
ESC
Height:
11mm
Tolerance Minus:
-20%
Voltage:
35 V dc
Minimum Operating Temperature:
-40°C
Lifetime:
2000 h @ +105 °C/35V dc/Ir
Technology:
Electrolytic
Ratings:
-
HTSUS:
8532.22.0020
RoHS Status:
ROHS3 Compliant
ESR (Equivalent Series Resistance):
900mOhm @ 100kHz
Polarization:
Polar
Capacitance:
10 µF
Operating Temperature:
-40°C ~ 105°C
Package / Case:
Radial, Can
Tolerance:
±20%
Voltage - Rated:
35 V
Height - Seated (Max):
0.492" (12.50mm)
Ripple Current @ High Frequency:
140 mA @ 100 kHz
REACH Status:
REACH Unaffected
Ripple Current @ Low Frequency:
70 mA @ 120 Hz
edacadModel:
ESC106M035AC3AA Models
Applications:
General Purpose
Surface Mount Land Size:
-
edacadModelUrl:
/en/models/2712570
Impedance:
900 mOhms
Package:
Bulk
Size / Dimension:
0.197" Dia (5.00mm)
standardLeadTime:
28 Weeks
Moisture Sensitivity Level (MSL):
Not Applicable
Mounting Type:
Through Hole
Series:
ESC
Lifetime @ Temp.:
2000 Hrs @ 105°C
Lead Spacing:
0.079" (2.00mm)
Base Product Number:
ESC106M
ECCN:
EAR99
Checking for live stock
FAQs
Yes. You can also search ESC106M035AC3AA on website for other similar products.
We accept all major payment methods for all products including ET11716743. Please check your shopping cart at the time of order.
You can order KEMET brand products with ESC106M035AC3AA directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in Aluminum Electrolytic Capacitors category are shipped in lowest possible time.
You will get a confirmation email regarding your order of KEMET ESC106M035AC3AA. You can also check on our website or by contacting our customer support team for further order details on KEMET ESC106M035AC3AA.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET11716743 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "KEMET" products on our website by using Enrgtech's Unique Manufacturing Part Number ET11716743.
Yes. We ship ESC106M035AC3AA Internationally to many countries around the world.
This is manufactured by KEMET. The manufacturer part number is ESC106M035AC3AA. The given dimensions of the product include 5 x 11mm. The lead is 20mm long. It provides a dissipation factor of 0.1. It provides a 10 µf of capacitance value. It features ±20% of tolerance value. Whereas its dielectric material family is aluminium electrolytic. The product has been well-designed with aluminium can construction. It has a maximum operating temperature of +105°c. It features a given value of +20% tolerance plus. Furthermore, the lead has 0.5mm diameter. Its accurate length is 11mm. It has 900mω equivalent series resistance. It harbors 3.5 μa of leakage current. The lead features 2mm pitch. Concerning its package and casing, it is can - single-ended, radial. Its diameter is 5mm. Furthermore, 140ma is the ripple current. The product is available in through hole configuration. The product esc, is a highly preferred choice for users. In addition, the height is 11mm. While it has tolerance minus of -20%. It carries a 35 v dc of voltage. Whereas, the minimum operating temperature of the product is -40°c. It provides a long-lasting service for a period of 2000 h @ +105 °c/35v dc/ir. This product use electrolytic technology. It is assigned with possible HTSUS value of 8532.22.0020. The product is rohs3 compliant. It carries ESR (Equivalent Series Resistance) of 900mohm @ 100khz. The product features a [Ploarization] polarity. The product has -40°c ~ 105°c operating temperature range. Moreover, the product comes in radial, can. It also exhibits voltage rating of 35 v. It has the maximum seated height of 0.492" (12.50mm). Additionally, it carries a ripple current and high frequency of 140 ma @ 100 khz. In addition, it is reach unaffected. Its ripple current at low frequency is 70 ma @ 120 hz. The product is widely employed in general purpose. It has an impedance value of 900 mohms. It is shipped in bulk package . The product's diameters include 0.197" dia (5.00mm). It has a long 28 weeks standard lead time. Its typical moisture sensitivity level is not applicable. This product offers longer life span for 2000 hrs @ 105°c. It is assigned with 0.079" (2.00mm) of lead spacing. Moreover, it corresponds to esc106m, a base product number of the product. The product is designated with the ear99 code number.
