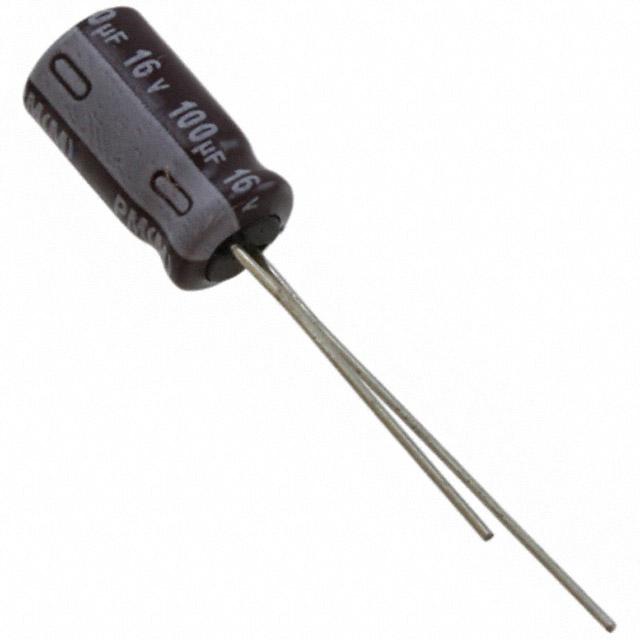

Nichicon UPM1C101MED1TD
Product Information
Diameter:
6.3mm
Ripple Current:
265mArms
Dimensions:
6.3 x 11mm
Mounting Type:
Through Hole
Series:
PM
Height:
11mm
Capacitance:
100µF
Voltage:
16V dc
Leakage Current:
48 μA
Lifetime:
2000h
Lead Pitch:
2.5mm
Maximum Operating Temperature:
+105°C
Tolerance:
±20%
Minimum Operating Temperature:
-55°C
Technology:
Electrolytic
Ratings:
AEC-Q200
HTSUS:
8532.22.0020
RoHS Status:
ROHS3 Compliant
ESR (Equivalent Series Resistance):
-
Polarization:
Polar
Capacitance:
100 µF
Operating Temperature:
-55°C ~ 105°C
Package / Case:
Radial, Can
Tolerance:
±20%
Voltage - Rated:
16 V
Height - Seated (Max):
0.492" (12.50mm)
Ripple Current @ High Frequency:
265 mA @ 10 kHz
REACH Status:
REACH Unaffected
Ripple Current @ Low Frequency:
175 mA @ 120 Hz
edacadModel:
UPM1C101MED1TD Models
Applications:
Automotive
Surface Mount Land Size:
-
edacadModelUrl:
/en/models/4320595
Impedance:
350 mOhms
Package:
Cut Tape (CT)
Size / Dimension:
0.248" Dia (6.30mm)
Moisture Sensitivity Level (MSL):
Not Applicable
Mounting Type:
Through Hole
Series:
UPM
Lifetime @ Temp.:
2000 Hrs @ 105°C
Lead Spacing:
0.098" (2.50mm)
ECCN:
EAR99
Checking for live stock
FAQs
Yes. You can also search UPM1C101MED1TD on website for other similar products.
We accept all major payment methods for all products including ET11267639. Please check your shopping cart at the time of order.
You can order Nichicon brand products with UPM1C101MED1TD directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in Aluminum Electrolytic Capacitors category are shipped in lowest possible time.
You will get a confirmation email regarding your order of Nichicon UPM1C101MED1TD. You can also check on our website or by contacting our customer support team for further order details on Nichicon UPM1C101MED1TD.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET11267639 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "Nichicon" products on our website by using Enrgtech's Unique Manufacturing Part Number ET11267639.
Yes. We ship UPM1C101MED1TD Internationally to many countries around the world.
This is manufactured by Nichicon. The manufacturer part number is UPM1C101MED1TD. Its diameter is 6.3mm. Furthermore, 265marms is the ripple current. The given dimensions of the product include 6.3 x 11mm. The product is available in through hole configuration. The product pm, is a highly preferred choice for users. In addition, the height is 11mm. It provides a 100µf of capacitance value. It carries a 16v dc of voltage. It harbors 48 μa of leakage current. It provides a long-lasting service for a period of 2000h. The lead features 2.5mm pitch. It has a maximum operating temperature of +105°c. It features ±20% of tolerance value. Whereas, the minimum operating temperature of the product is -55°c. This product use electrolytic technology. It is rated with aec-q200. It is assigned with possible HTSUS value of 8532.22.0020. The product is rohs3 compliant. The product features a [Ploarization] polarity. It provides a 100 µf of capacitance value. The product has -55°c ~ 105°c operating temperature range. Moreover, the product comes in radial, can. It also exhibits voltage rating of 16 v. It has the maximum seated height of 0.492" (12.50mm). Additionally, it carries a ripple current and high frequency of 265 ma @ 10 khz. In addition, it is reach unaffected. Its ripple current at low frequency is 175 ma @ 120 hz. The product is widely employed in automotive. It has an impedance value of 350 mohms. It is shipped in cut tape (ct) package . The product's diameters include 0.248" dia (6.30mm). Its typical moisture sensitivity level is not applicable. The product upm, is a highly preferred choice for users. This product offers longer life span for 2000 hrs @ 105°c. It is assigned with 0.098" (2.50mm) of lead spacing. The product is designated with the ear99 code number.
