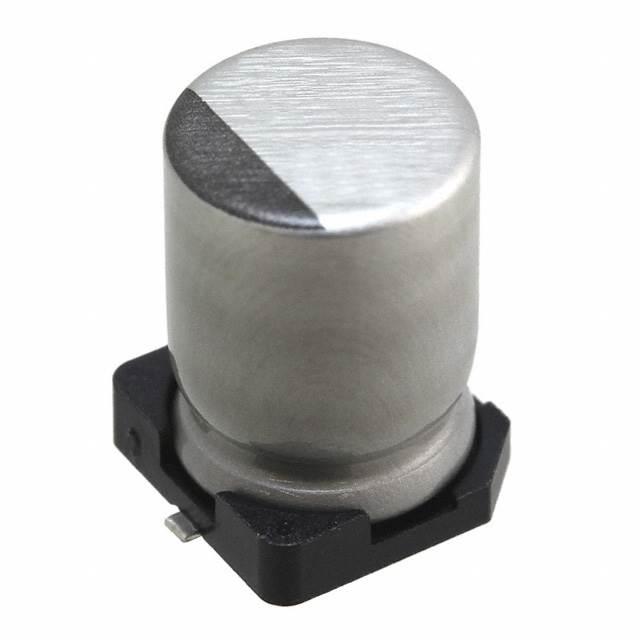

Nichicon UCB1E470MCL1GS
Product Information
Diameter:
6.3mm
Ripple Current:
63mA
Polarised:
Polar
Dimensions:
6.3 (Dia.) x 8.7mm
Mounting Type:
Surface Mount
Series:
CB
Height:
8.7mm
Capacitance:
47 µF
Voltage:
25 V dc
Leakage Current:
4 μA
Lifetime:
7000h
Maximum Operating Temperature:
+105°C
Tolerance:
±20%
Minimum Operating Temperature:
-25°C
Technology:
Electrolytic
Ratings:
-
HTSUS:
8532.22.0020
RoHS Status:
ROHS3 Compliant
ESR (Equivalent Series Resistance):
-
Polarization:
Polar
Capacitance:
47 µF
Operating Temperature:
-25°C ~ 105°C
Package / Case:
Radial, Can - SMD
Tolerance:
±20%
Voltage - Rated:
25 V
Height - Seated (Max):
0.343" (8.70mm)
Ripple Current @ High Frequency:
94.5 mA @ 10 kHz
REACH Status:
REACH Unaffected
Ripple Current @ Low Frequency:
63 mA @ 120 Hz
edacadModel:
UCB1E470MCL1GS Models
Applications:
General Purpose
Surface Mount Land Size:
0.260" L x 0.260" W (6.60mm x 6.60mm)
edacadModelUrl:
/en/models/2549592
Package:
Tape & Reel (TR)
Size / Dimension:
0.248" Dia (6.30mm)
standardLeadTime:
23 Weeks
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Mounting Type:
Surface Mount
Series:
UCB
Lifetime @ Temp.:
7000 Hrs @ 105°C
Lead Spacing:
-
ECCN:
EAR99
Checking for live stock
FAQs
Yes. You can also search UCB1E470MCL1GS on website for other similar products.
We accept all major payment methods for all products including ET11077015. Please check your shopping cart at the time of order.
You can order Nichicon brand products with UCB1E470MCL1GS directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in Aluminum Electrolytic Capacitors category are shipped in lowest possible time.
You will get a confirmation email regarding your order of Nichicon UCB1E470MCL1GS. You can also check on our website or by contacting our customer support team for further order details on Nichicon UCB1E470MCL1GS.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET11077015 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "Nichicon" products on our website by using Enrgtech's Unique Manufacturing Part Number ET11077015.
Yes. We ship UCB1E470MCL1GS Internationally to many countries around the world.
This is manufactured by Nichicon. The manufacturer part number is UCB1E470MCL1GS. Its diameter is 6.3mm. Furthermore, 63ma is the ripple current. Furthermore, it is polar polarised. The given dimensions of the product include 6.3 (dia.) x 8.7mm. The product is available in surface mount configuration. The product cb, is a highly preferred choice for users. In addition, the height is 8.7mm. It provides a 47 µf of capacitance value. It carries a 25 v dc of voltage. It harbors 4 μa of leakage current. It provides a long-lasting service for a period of 7000h. It has a maximum operating temperature of +105°c. It features ±20% of tolerance value. Whereas, the minimum operating temperature of the product is -25°c. This product use electrolytic technology. It is assigned with possible HTSUS value of 8532.22.0020. The product is rohs3 compliant. The product features a [Ploarization] polarity. The product has -25°c ~ 105°c operating temperature range. Moreover, the product comes in radial, can - smd. It also exhibits voltage rating of 25 v. It has the maximum seated height of 0.343" (8.70mm). Additionally, it carries a ripple current and high frequency of 94.5 ma @ 10 khz. In addition, it is reach unaffected. Its ripple current at low frequency is 63 ma @ 120 hz. The product is widely employed in general purpose. It has typical surface-mount land sizes, such as 0.260" l x 0.260" w (6.60mm x 6.60mm). It is shipped in tape & reel (tr) package . The product's diameters include 0.248" dia (6.30mm). It has a long 23 weeks standard lead time. Its typical moisture sensitivity level is 1 (unlimited). The product ucb, is a highly preferred choice for users. This product offers longer life span for 7000 hrs @ 105°c. The product is designated with the ear99 code number.
