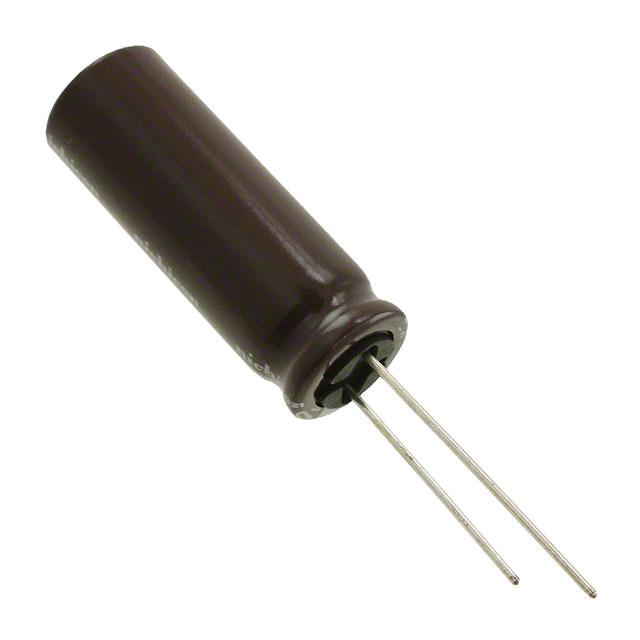

Nichicon UPM2A221MHD

UPM2A221MHD Nichicon
UPM2A221MHD
Nichicon

Product Information

Diameter:
12.5mm
Ripple Current:
1450mArms
Dimensions:
12.5 x 35.5mm
Mounting Type:
Through Hole
Series:
PM
Height:
35.5mm
Capacitance:
220µF
Voltage:
100V dc
Leakage Current:
660 μA
Lifetime:
5000h
Lead Pitch:
5mm
Maximum Operating Temperature:
+105°C
Tolerance:
±20%
Minimum Operating Temperature:
-55°C
Technology:
Electrolytic
Ratings:
AEC-Q200
HTSUS:
8532.22.0020
RoHS Status:
ROHS3 Compliant
ESR (Equivalent Series Resistance):
-
Polarization:
Polar
Capacitance:
220 µF
Operating Temperature:
-55°C ~ 105°C
Package / Case:
Radial, Can
Tolerance:
±20%
Voltage - Rated:
100 V
Height - Seated (Max):
1.476" (37.50mm)
REACH Status:
REACH Affected
Ripple Current @ Low Frequency:
1.05 A @ 120 Hz
edacadModel:
UPM2A221MHD Models
Applications:
Automotive
Surface Mount Land Size:
-
edacadModelUrl:
/en/models/2599795
Impedance:
87 mOhms
Package:
Bulk
Size / Dimension:
0.492" Dia (12.50mm)
Moisture Sensitivity Level (MSL):
Not Applicable
Mounting Type:
Through Hole
Series:
UPM
Lifetime @ Temp.:
5000 Hrs @ 105°C
Lead Spacing:
0.197" (5.00mm)
ECCN:
EAR99
RoHs Compliant
Checking for live stock

This is manufactured by Nichicon. The manufacturer part number is UPM2A221MHD. Its diameter is 12.5mm. Furthermore, 1450marms is the ripple current. The given dimensions of the product include 12.5 x 35.5mm. The product is available in through hole configuration. The product pm, is a highly preferred choice for users. In addition, the height is 35.5mm. It provides a 220µf of capacitance value. It carries a 100v dc of voltage. It harbors 660 μa of leakage current. It provides a long-lasting service for a period of 5000h. The lead features 5mm pitch. It has a maximum operating temperature of +105°c. It features ±20% of tolerance value. Whereas, the minimum operating temperature of the product is -55°c. This product use electrolytic technology. It is rated with aec-q200. It is assigned with possible HTSUS value of 8532.22.0020. The product is rohs3 compliant. The product features a [Ploarization] polarity. It provides a 220 µf of capacitance value. The product has -55°c ~ 105°c operating temperature range. Moreover, the product comes in radial, can. It also exhibits voltage rating of 100 v. It has the maximum seated height of 1.476" (37.50mm). In addition, it is reach affected. Its ripple current at low frequency is 1.05 a @ 120 hz. The product is widely employed in automotive. It has an impedance value of 87 mohms. It is shipped in bulk package . The product's diameters include 0.492" dia (12.50mm). Its typical moisture sensitivity level is not applicable. The product upm, is a highly preferred choice for users. This product offers longer life span for 5000 hrs @ 105°c. It is assigned with 0.197" (5.00mm) of lead spacing. The product is designated with the ear99 code number.

pdf icon
Datasheet(Technical Reference)
pdf icon
UPM Series Datasheet(Datasheets)
pdf icon
Miniature Type Taping Spec(Datasheets)
pdf icon
Mult Series NRND 23/Jun/2022(PCN Part Status Change)

Reviews

  • Be the first to review.

Enrgtech offers the world's largest selection of electrical and electronic components in stock and available for Aluminum Electrolytic Capacitors, including Nichicon UPM2A221MHD, with immediate shipment. We are committed to providing you Nichicon UPM2A221MHD from leading manufacturers Nichicon trusted worldwide with full access to our products and services through our online eCommerce platform. Aluminum Electrolytic Capacitors consisting of Nichicon UPM2A221MHD are made from two sheets of aluminum foil and a piece of electrolyte-soaked paper. The Nichicon UPM2A221MHD' anode aluminum foil is anodized on one side to generate a weak layer of oxide, and the cathode aluminum foil is non-anodized; the anode and cathode are separated by electrolyte-soaked paper. The Nichicon UPM2A221MHD from Aluminum Electrolytic Capacitors is found in many applications such as computer motherboards and power supplies and is ideal when large capacitance is required, and current leakage isn't a significant factor.
