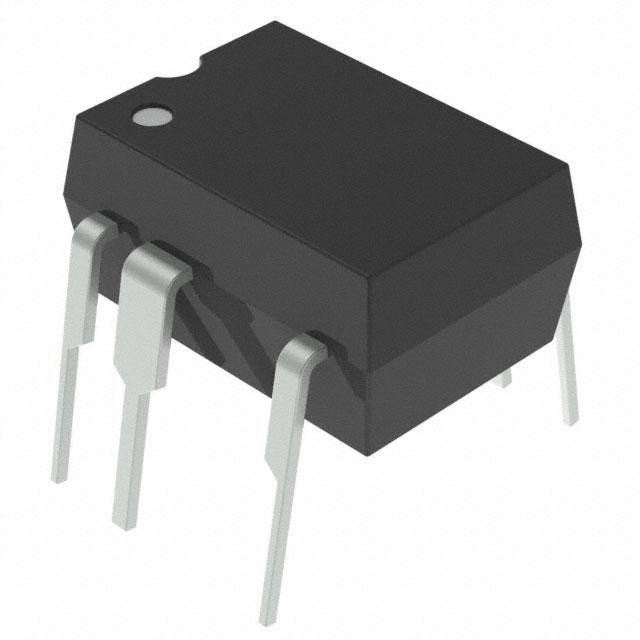

Power Integrations LNK3209P
Product Information
HTSUS:
8542.39.0001
RoHS Status:
ROHS3 Compliant
Supplier Device Package:
8-PDIP-C
Operating Temperature:
-40°C ~ 150°C (TJ)
Voltage - Breakdown:
725V
Voltage - Supply (Vcc/Vdd):
85V ~ 265V
Package / Case:
8-DIP (0.300", 7.62mm), 7 Leads
Internal Switch(s):
Yes
Frequency - Switching:
66kHz
REACH Status:
REACH Unaffected
edacadModel:
LNK3209P Models
edacadModelUrl:
/en/models/16967694
Topology:
Buck, Buck-Boost, Flyback
Control Features:
Frequency Control, Soft Start
Duty Cycle:
69%
Package:
Tube
Output Isolation:
Non-Isolated
Moisture Sensitivity Level (MSL):
Not Applicable
standardLeadTime:
18 Weeks
Mounting Type:
Through Hole
Series:
LinkSwitch®-TN2
Fault Protection:
Current Limiting, Open Loop, Over Load, Over Temperature, Over Voltage, Short Circuit, UVLO
Base Product Number:
LNK3209
ECCN:
EAR99
Checking for live stock
FAQs
Yes. You can also search LNK3209P on website for other similar products.
We accept all major payment methods for all products including ET24097510. Please check your shopping cart at the time of order.
You can order Power Integrations brand products with LNK3209P directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in AC DC Converters, Offline Switches category are shipped in lowest possible time.
You will get a confirmation email regarding your order of Power Integrations LNK3209P. You can also check on our website or by contacting our customer support team for further order details on Power Integrations LNK3209P.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET24097510 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "Power Integrations" products on our website by using Enrgtech's Unique Manufacturing Part Number ET24097510.
Yes. We ship LNK3209P Internationally to many countries around the world.
This is manufactured by Power Integrations. The manufacturer part number is LNK3209P. It is assigned with possible HTSUS value of 8542.39.0001. The product is rohs3 compliant. 8-pdip-c is the supplier device package value. The product has -40°c ~ 150°c (tj) operating temperature range. The nominal breakdown voltage of 725v. The supply voltage of a bespoke product includes 85v ~ 265v. Moreover, the product comes in 8-dip (0.300", 7.62mm), 7 leads. Internal switch options: yes. The switching frequency of the standard product is 66khz. In addition, it is reach unaffected. Topology includes buck, buck-boost, flyback. Possible control features include frequency control, soft start. Provides 69% duty cycles. It is shipped in tube package . Features non-isolated output isolation. Its typical moisture sensitivity level is not applicable. It has a long 18 weeks standard lead time. The product is available in through hole configuration. The product linkswitch®-tn2, is a highly preferred choice for users. Fault protection features include current limiting, open loop, over load, over temperature, over voltage, short circuit, uvlo. Moreover, it corresponds to lnk3209, a base product number of the product. The product is designated with the ear99 code number.
