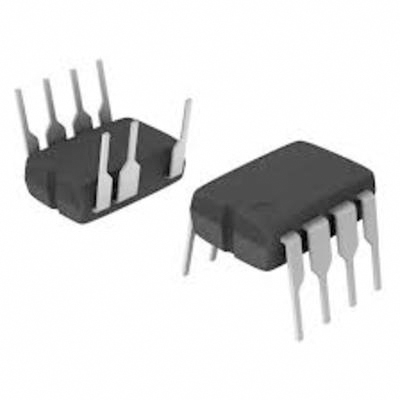

Power Integrations TNY178PN, AC-DC Converter 7-Pin, Plastic DIP-8C

TNY178PN Power Integrations , AC-DC Converter 7-Pin, Plastic DIP-8C
Power Integrations

Product Information

Dimensions:
9.83 x 6.60 x 3.68mm
Mounting Type:
Through Hole
Current Limit:
0.55A
Package Type:
Plastic DIP-8C
Pin Count:
7
HTSUS:
8542.39.0060
RoHS Status:
RoHS Compliant
Supplier Device Package:
8-PDIP-C
Power (Watts):
28 W
Voltage - Breakdown:
650V
Voltage - Supply (Vcc/Vdd):
85V ~ 265V
Package / Case:
8-DIP (0.300", 7.62mm), 7 Leads
Internal Switch(s):
Yes
Frequency - Switching:
132kHz
title:
TNY178PN
Operating Temperature:
-40°C ~ 150°C (TA)
Manufacturer:
Power Integrations
Control Features:
EN
Duty Cycle:
65%
Output Isolation:
Isolated
Moisture Sensitivity Level (MSL):
1 (Unlimited)
standardLeadTime:
8 Weeks
Mounting Type:
Through Hole
Series:
-
Fault Protection:
Current Limiting, Over Temperature, Over Voltage
Packaging:
Tube
Topology:
Flyback
Base Product Number:
TNY178
ECCN:
EAR99
RoHs Compliant
Checking for live stock

This is AC-DC Converter 7-Pin Plastic DIP-8C manufactured by Power Integrations. The manufacturer part number is TNY178PN. The given dimensions of the product include 9.83 x 6.60 x 3.68mm. The product is available in through hole configuration. Additionally, it has 0.55a current limit . The package is a sort of plastic dip-8c. It contains 7 pins. It is assigned with possible HTSUS value of 8542.39.0060. The product is rohs compliant. 8-pdip-c is the supplier device package value. The product features power and watts of 28 w. The nominal breakdown voltage of 650v. The supply voltage of a bespoke product includes 85v ~ 265v. Moreover, the product comes in 8-dip (0.300", 7.62mm), 7 leads. Internal switch options: yes. The switching frequency of the standard product is 132khz. The product has -40°c ~ 150°c (ta) operating temperature range. The power integrations's product offers user-desired applications. Possible control features include en. Provides 65% duty cycles. Features isolated output isolation. Its typical moisture sensitivity level is 1 (unlimited). It has a long 8 weeks standard lead time. Fault protection features include current limiting, over temperature, over voltage. In addition, tube is the available packaging type of the product. Topology includes flyback. Moreover, it corresponds to tny178, a base product number of the product. The product is designated with the ear99 code number.

pdf icon
Datasheet - TNY178PN(Technical Reference)
pdf icon
Mult Dev EOL 16/Nov/2021(PCN Obsolescence/ EOL)
pdf icon
TNY174-180(Datasheets)
pdf icon
LNK/TNY/TOP 03/Mar/2022(PCN Design/Specification)
