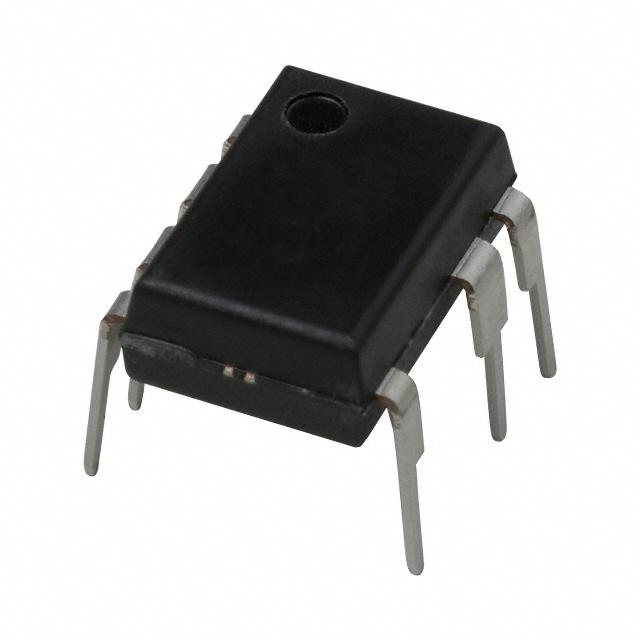

Fairchild Semiconductor FSL306LRN Intelligent Power Switch, Integrate Pulse Width Modulator, 0.45A, 3W, PDIP 7-Pin

FSL306LRN Fairchild Semiconductor  Intelligent Power Switch, Integrate Pulse Width Modulator, 0.45A, 3W, PDIP 7-Pin
FSL306LRN
Fairchild Semiconductor

Product Information

Number of Outputs:
1
Power Switch Type:
Integrate Pulse Width Modulator
Dimensions:
9.77 x 6.47 x 3.42mm
Mounting Type:
Through Hole
Minimum Operating Temperature:
-40 °C
Height:
3.42mm
Current:
0.45A
Width:
6.47mm
Length:
9.77mm
Package Type:
PDIP
Switch On Resistance:
18Ω
Power Rating:
3W
Maximum Operating Temperature:
+125 °C
Pin Count:
7
Voltage - Start Up:
8 V
Frequency - Switching:
50kHz
Supplier Device Package:
7-DIP
Power (Watts):
7 W
Voltage - Breakdown:
650V
Voltage - Supply (Vcc/Vdd):
7V ~ 26V
Package / Case:
8-DIP (0.300", 7.62mm), 7 Leads
Internal Switch(s):
Yes
HTSUS:
0000.00.0000
Operating Temperature:
-40°C ~ 125°C (TJ)
Topology:
Buck, Flyback
Control Features:
-
Duty Cycle:
-
Package:
Bulk
Output Isolation:
Non-Isolated
Mounting Type:
Through Hole
Series:
-
Fault Protection:
Current Limiting, Open Loop, Over Load, Over Temperature, Over Voltage
Base Product Number:
FSL306
RoHs Compliant
Checking for live stock

This is Intelligent Power Switch Integrate Pulse Width Modulator 0.45A 3W PDIP 7-Pin manufactured by Fairchild Semiconductor. The manufacturer part number is FSL306LRN. Additionally, the product is supplied with 1 outputs. Its power switch is of integrate pulse width modulator type . The given dimensions of the product include 9.77 x 6.47 x 3.42mm. The product is available in through hole configuration. Whereas, the minimum operating temperature of the product is -40 °c. In addition, the height is 3.42mm. Features a 0.45a current in A. Furthermore, the product is 6.47mm wide. Its accurate length is 9.77mm. The package is a sort of pdip. In addition, it has about 18ω switch on resistance . Feature 3w of power rating. It has a maximum operating temperature of +125 °c. It contains 7 pins. It bears start up voltage of 8 v. The switching frequency of the standard product is 50khz. 7-dip is the supplier device package value. The product features power and watts of 7 w. The nominal breakdown voltage of 650v. The supply voltage of a bespoke product includes 7v ~ 26v. Moreover, the product comes in 8-dip (0.300", 7.62mm), 7 leads. Internal switch options: yes. It is assigned with possible HTSUS value of 0000.00.0000. The product has -40°c ~ 125°c (tj) operating temperature range. Topology includes buck, flyback. It is shipped in bulk package . Features non-isolated output isolation. Fault protection features include current limiting, open loop, over load, over temperature, over voltage. Moreover, it corresponds to fsl306, a base product number of the product.
