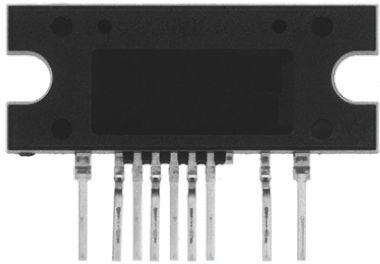

This is Intelligent Power Switch Half-Bridge Resonant Converter 11mA 25V 80W SIP 9-Pin manufactured by Fairchild Semiconductor. The manufacturer part number is FSFR1600XS. Additionally, the product is supplied with 1 outputs. Its power switch is of half-bridge resonant converter type . The given dimensions of the product include 26.2 x 3.4 x 10.7mm. The product is available in through hole configuration. Whereas, the minimum operating temperature of the product is -40 °c. In addition, the height is 10.7mm. Features a 11ma current in A. Furthermore, the product is 3.4mm wide. Its accurate length is 26.2mm. The package is a sort of sip. It carries a 25v of voltage. In addition, it has about 1.55ω switch on resistance . Feature 80w of power rating. It has a maximum operating temperature of +130 °c. It contains 9 pins. It bears start up voltage of 12.5 v. The switching frequency of the standard product is up to 300khz. 9-sip is the supplier device package value. The product features power and watts of 160 w. The nominal breakdown voltage of 500v. The supply voltage of a bespoke product includes 10v ~ 25v. Moreover, the product comes in 10-ssip module, 9 leads, formed leads. Internal switch options: yes. It is assigned with possible HTSUS value of 8542.39.0001. The product has -40°c ~ 130°c (tj) operating temperature range. Topology includes half-bridge. Possible control features include frequency control. Provides 50% duty cycles. It is shipped in bulk package . Features isolated output isolation. The product fsfr-xs, is a highly preferred choice for users. Fault protection features include current limiting, over temperature, over voltage. Moreover, it corresponds to fsfr1600, a base product number of the product. The product is designated with the ear99 code number.
FSFR-XS Series, Fairchild Power Switch (FPS) for Half-Bridge Resonant Converters(Technical Reference)
