Maximum Temperature:
+70°C
Minimum Temperature:
-25°C
Width:
75.5mm
MTBF:
400kh
Output Voltage:
5V dc
Type:
AC/DC Adapter
Load Regulation:
±5%
Standards Met:
ANSI/AAMI ES60601-1/60601-1-11, CB, CE, cULus Recognised, EISA 2007/DOE, EN 55011 Class B, EN 61000-3-2, EN 61000-3-3, EN 61000-4-11, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-8, EU ErP, FCC PART 15/CISPR22 Class B, MIL-HDBK-217F, TUV 60601-1-11, TUV Rheinland EN 60601-1, TUV Rheinland IEC 60601-1
Input Connector:
Universal Plug
Output Connector:
2.1 x 5.5 x 11 mm Centre Positive
Input Voltage:
100 V ac, 110 V ac, 115 V ac, 120 V ac, 127 V ac, 220 V ac, 230 V ac, 240V ac
Depth:
56.2mm
Number of Outputs:
1
Length:
39.1mm
Medical Approved:
Yes
Output Current:
4A
Series:
GEM30I
Plug Type:
Australia, European Plug, UK, US
Adapter Type:
Plug-In Adapter
Power Rating:
20W
Cable Length:
1m

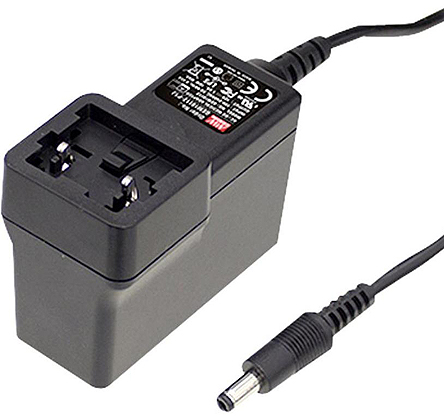

This is 20W Plug In Power Supply 5V dc 0 → 4A 1 Output Switched Mode Power Supply Medical Approved manufactured by Mean Well. The manufacturer part number is GEM30I05-P1J. The product has +70°c maximum temperature. While its minimum temperature is -25°c. Furthermore, the product is 75.5mm wide. The MTBF values include 400kh. Features a 5v dc output voltage. It comes in ac/dc adapter configuration. Load Regulation - ±5%. The product complies with all safety standards, such as ansi/aami es60601-1/60601-1-11, cb, ce, culus recognised, eisa 2007/doe, en 55011 class b, en 61000-3-2, en 61000-3-3, en 61000-4-11, en 61000-4-2, en 61000-4-3, en 61000-4-4, en 61000-4-5, en 61000-4-6, en 61000-4-8, eu erp, fcc part 15/cispr22 class b, mil-hdbk-217f, tuv 60601-1-11, tuv rheinland en 60601-1, tuv rheinland iec 60601-1. Input connector of universal plug. Features a versatile 2.1 x 5.5 x 11 mm centre positive output connector. Its input voltage is 100 v ac, 110 v ac, 115 v ac, 120 v ac, 127 v ac, 220 v ac, 230 v ac, 240v ac. The product comes in 56.2mm depth. Additionally, the product is supplied with 1 outputs. Its accurate length is 39.1mm. Medical Approval - yes. It carries 4a output current. The product gem30i, is a highly preferred choice for users. The plug is a highly reliable australia, european plug, uk, us with long service life. The adapter is a plug-in adapter. Feature 20w of power rating. Furthermore, the cable has a 1m of length.
