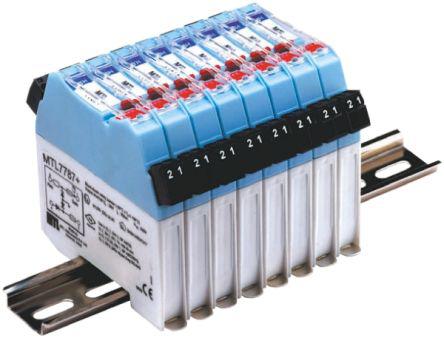

1 Channel Barrier with Analogue Output, 35 V dc max, 93mA max

Enrgtech Part No: ET14013283
|
Manufacturer Part No:
MTL7706+
|
Manufacturer: MTL

MTL7706- 1 Channel Barrier with Analogue Output, 35 V dc max, 93mA max

Product Information

Signal Type:

Analog Input

Maximum Current:

93mA

Maximum Voltage:

35V dc

Barrier Type:

Zener Barrier

Hazardous Area Certification:

ATEX

Number of Channels:

Supply Voltage:

28V dc

Minimum Operating Temperature:

-20°C

Operating Temperature Range:

Maximum of +65°C

Maximum Operating Temperature:

+65°C

Checking for live stock

The Eaton MTL7706+ (formerly MTL) is a premier 1-channel shunt-diode Zener barrier designed to provide intrinsic safety for "smart" 2-wire 4/20mA transmitters. This DIN-rail-mounted device acts as a critical safety interface, limiting electrical energy to prevent ignition in explosive or hazardous atmospheres. Featuring built-in electronic overvoltage protection and a compact 12.6mm profile, it ensures highly accurate signal transmission while protecting personnel and assets from electrical faults in industrial process environments.

What Makes the MTL7706+ Stand Out?

This MTL MTL7706+ Zener barrier provides uncompromised protection by diverting excess energy to ground, ensuring safe operation in volatile, high-risk industrial zones.

Robust Protection: Includes integrated electronic overvoltage protection to safeguard the unit against unregulated power supplies.
Simplified Maintenance: Features removable, colour-coded terminals and a bussed power feed facility for rapid, error-free installation.

Key Features & Suitable Environments

Special Features
Zener Diode Technology: Uses pulse-tested diodes and infallible resistors to limit voltage and current to safe levels.
High Accuracy: Maintains precise 4/20mA signal integrity with a remarkable accuracy of ±2µA under all operating conditions.
Smart Compatibility: Passes digital communication signals up to 10kHz, supporting advanced "smart" field instrumentation and HART protocols.
Rugged Construction: Certified for a wide temperature range (-20°C to +65°C) to withstand harsh industrial climates.
Typical Applications
Oil & Gas Refineries: Protecting pressure and level transmitters in zones with high concentrations of flammable gases.
Chemical Processing: Ensuring safety for instrumentation used in reactors and storage facilities containing volatile chemicals.
Pharmaceutical Manufacturing: Providing intrinsic safety for automated control loops in cleanroom or explosive-rated environments.

Shunt-Diode Safety Barriers MTL7700 Series - Instructions Sheet(Technical Reference)

DIN-Rail Mounting Safety Barriers MTL7700 Series - Datasheet(Technical Reference)
