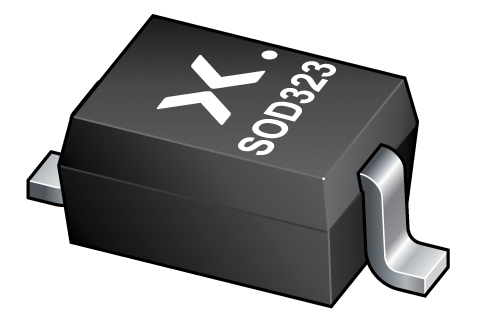

Nexperia Zener Diode, 20V ±2% 400 mW SMT 2-Pin SC-76, SOD-323

PDZ20B-115 Nexperia Zener Diode, 20V ±2% 400 mW SMT 2-Pin SC-76, SOD-323
Nexperia

Product Information

Nominal Zener Voltage:
20V
Dimensions:
1.8 x 1.35 x 1.05mm
Mounting Type:
Surface Mount
Forward Current:
200mA
Typical Voltage Temperature Coefficient:
16.4mV/K
Maximum Operating Temperature:
+150 °C
Maximum Power Dissipation:
400 mW
Automotive Standard:
AEC-Q101
Forward Voltage:
1.1V
Package Type:
SC-76, SOD-323
Number of Elements per Chip:
1
Zener Type:
Voltage Regulator
Zener Voltage Tolerance:
±2%
Diode Configuration:
Single
Pin Count:
2
Test Current:
5mA
RoHs Compliant
Checking for live stock

This is Zener Diode 20V ±2% 400 mW SMT 2-Pin SC-76 SOD-323 manufactured by Nexperia. The manufacturer part number is PDZ20B,115. Its nominal Zener voltage is 20v. The given dimensions of the product include 1.8 x 1.35 x 1.05mm. The product is available in surface mount configuration. It features 200ma forward current. The product has a typical 16.4mv/k voltage temperature coefficient . It has a maximum operating temperature of +150 °c. Provides up to 400 mw maximum power dissipation. The product complies with automotive standard - aec-q101. The forward voltage is 1.1v. The package is a sort of sc-76, sod-323. It consists of 1 elements per chip. The Zener is a type of voltage regulator Zener with unique features. It has ±2% Zener voltage tolerance. The diode features a single configuration. It contains 2 pins. In addition, it has 5ma test current.
