Manufacturer : Wurth Elektronik
Manufacturer Part No : 760308102144
Enrgtech Part No : ET16990286
Product Range : PolySwitch RXEF Series

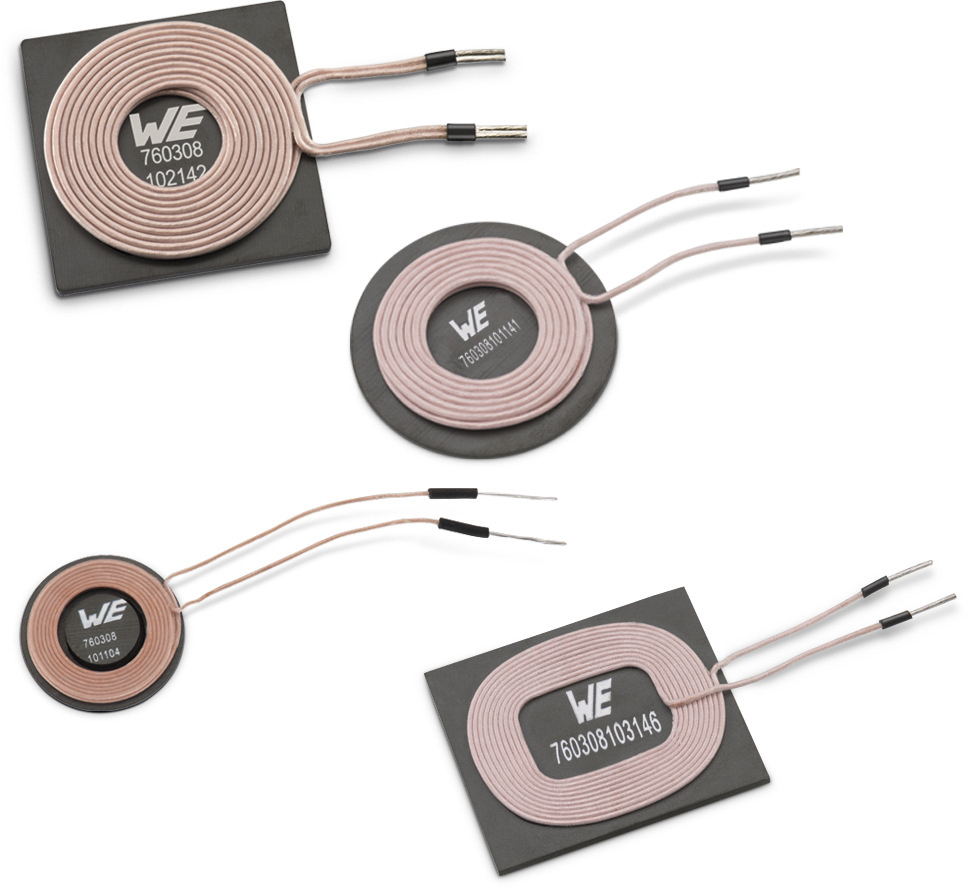

Wurth Elektronik Wireless Charging Transmitter Coil, Ferrite, 18A, 12mΩ, 100 Q Factor

Qi standard compliant Litzwire used - highest Q-value available on market Applicable for up to 15 W (up to 300 W outside the standards) High permeability shielding Cancels charging flux to be not coupled into sensitive components or batteries High reliable construction Pot core construction limits the stray field in the design Mix and match your tool to find the perfect coil combination Portable devices used in a clean area, where connectors pose a risk of polluting e.g. medical facilities, (industrial) clean rooms, mining industry Devices with a large number of mating cycles to avoid connector damage: e.g. Smart watches, fitness tracker... Consumer products: e.g. Digital cameras, baby phone, remote control, smartphone sleeves, watertight products Explosion sensitive area where the use of a physical connection is hazardous Smart sensors

Product Information

Function : Transmitter
Maximum DC Resistance : 12mΩ
Dimensions : 53.5 x 53.5 x 6.5mm
Maximum DC Current : 18A
Series : WE-WPCC
Q Factor : 100
Height : 6.5mm
Width : 53.5mm
Length : 53.5mm
Core Material : Ferrite
Inductance : 5.8 μH
Self Resonant Frequency : 12MHz
Maximum Operating Temperature : +105°C
Minimum Operating Temperature : -20°C
rohs : RoHS Certificate of Compliance
