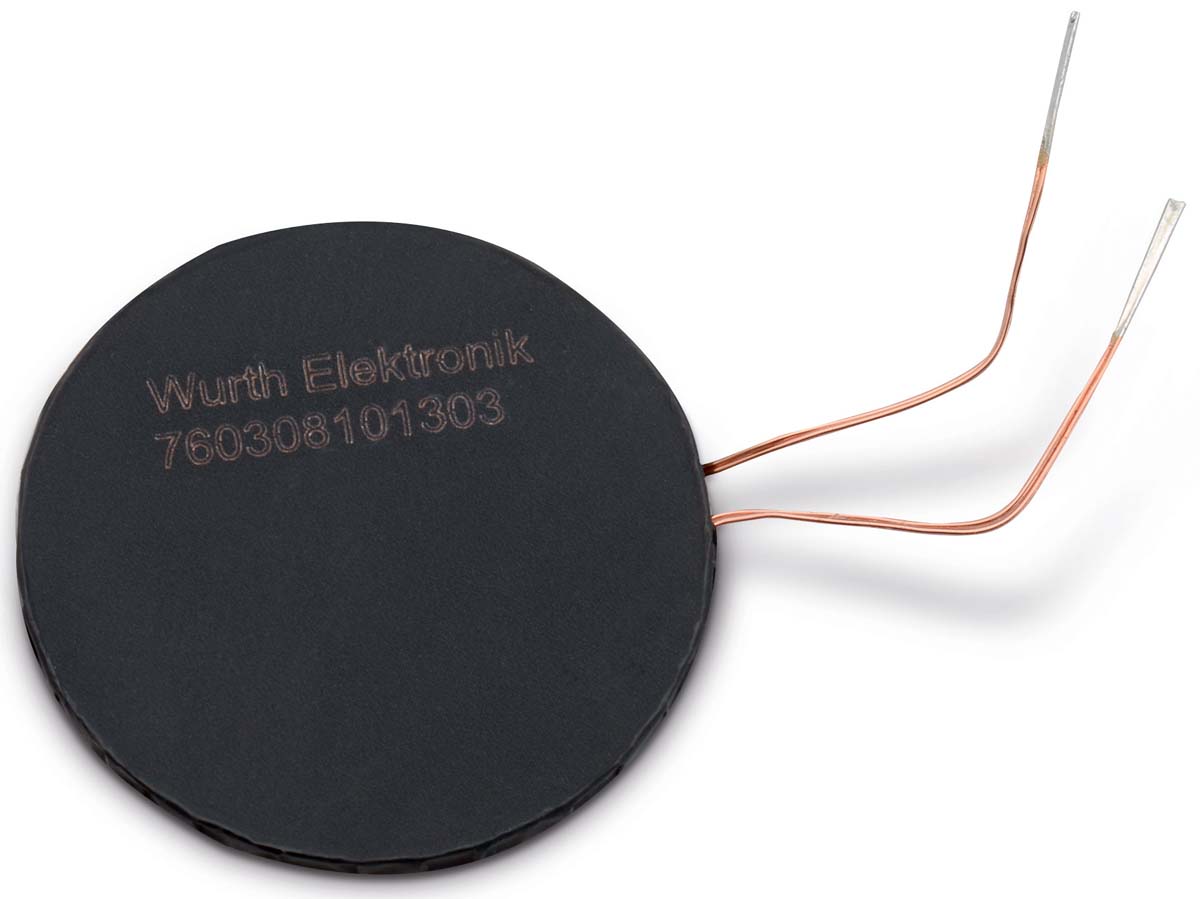

Wurth 47 μH ±10% Ferrite Wireless Charging Receiver Coil, Max SRF:8MHz, Q:25, 1.5A Idc, 500mΩ Rdc WE-WPCC

760308101303 Wurth 47 μH ±10% Ferrite Wireless Charging Receiver Coil, Max SRF:8MHz, Q:25, 1.5A Idc, 500mΩ Rdc WE-WPCC
760308101303 Wurth 47 μH ±10% Ferrite Wireless Charging Receiver Coil, Max SRF:8MHz, Q:25, 1.5A Idc, 500mΩ Rdc WE-WPCC
Wurth Elektronik

Product Information

Function:
Receiver
Diameter:
26.3 mm
Inductance Tolerance:
±10 %
Minimum Quality Factor:
25
Maximum DC Resistance:
500mΩ
Maximum DC Current:
1.5A
Series:
WE-WPCC
Termination Style:
Radial
Length:
51.3mm
Standards/Approvals:
EN 61760-1:2006
Core Material:
Ferrite
Inductance:
47 μH
Maximum Self Resonant Frequency:
8MHz
Product Type:
Wireless Charging Coil
Maximum Operating Temperature:
105°C
Minimum Operating Temperature:
-20°C
Mount Type:
Axial
RoHs Compliant
Checking for live stock

This is Wurth 47 μH ±10% Ferrite Wireless Charging Receiver Coil Max SRF:8MHz Q:25 1.5A Idc 500mΩ Rdc WE-WPCC manufactured by Wurth Elektronik. The manufacturer part number is 760308101303. It performs basic function of receiver. Its diameter is 26.3 mm. It has a standard ±10 % inductance tolerance . It has minimum 25 quality factors. It allows up to 500mω maximum DC resistance. While it carries 1.5a of maximum DC current. The product we-wpcc, is a highly preferred choice for users. Moreover, it has radial terminal style. Its accurate length is 51.3mm. The core is manufactured from highly durable and reliable ferrite materials. The product has a 47 μh inductance value. It provides 8mhz of maximum self-resonant frequency. wireless charging coil is a versatile product designed to provide user-defined applications. It has a maximum operating temperature of 105°c. Whereas, the minimum operating temperature of the product is -20°c. It has a axial type mount .

pdf icon
Datasheet(Technical Reference)
pdf icon
Selection and Characteristics of WE-FSFS Ferrite Sheets - Application Note(Technical Reference)
