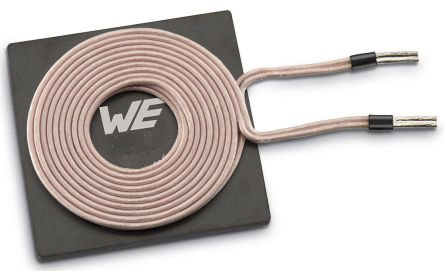

Wurth Elektronik Radial Wireless Charging Receiver Coil, Ferrite Core, 1.7A, 330mΩ, 18 Q Factor

760308102213 Wurth Elektronik Radial Wireless Charging Receiver Coil, Ferrite Core, 1.7A, 330mΩ, 18 Q Factor
760308102213 Wurth Elektronik Radial Wireless Charging Receiver Coil, Ferrite Core, 1.7A, 330mΩ, 18 Q Factor
Wurth Elektronik

Product Information

Function:
Receiver
Diameter:
29 mm
Inductance Tolerance:
±10 %
Minimum Quality Factor:
18
Maximum DC Resistance:
330mΩ
Maximum DC Current:
1.7A
Series:
WE-WPCC
Termination Style:
Radial
Height:
0.62mm
Width:
29 mm
Length:
29mm
Standards/Approvals:
RoHS
Core Material:
Ferrite
Inductance:
7.9 μH
Maximum Self Resonant Frequency:
21MHz
Product Type:
Wireless Charging Coil
Maximum Operating Temperature:
105°C
Minimum Operating Temperature:
-20°C
Mount Type:
Radial
RoHs Compliant
Checking for live stock

This is Radial Wireless Charging Receiver Coil Ferrite Core 1.7A 330mΩ 18 Q Factor manufactured by Wurth Elektronik. The manufacturer part number is 760308102213. It performs basic function of receiver. Its diameter is 29 mm. It has a standard ±10 % inductance tolerance . It has minimum 18 quality factors. It allows up to 330mω maximum DC resistance. While it carries 1.7a of maximum DC current. The product we-wpcc, is a highly preferred choice for users. Moreover, it has radial terminal style. In addition, the height is 0.62mm. Furthermore, the product is 29 mm wide. Its accurate length is 29mm. The core is manufactured from highly durable and reliable ferrite materials. The product has a 7.9 μh inductance value. It provides 21mhz of maximum self-resonant frequency. wireless charging coil is a versatile product designed to provide user-defined applications. It has a maximum operating temperature of 105°c. Whereas, the minimum operating temperature of the product is -20°c. It has a radial type mount .

pdf icon
Wurth Elektronik Application Note - High Power Wireless Power Transfer for the Industrial Environment(Technical Reference)
pdf icon
Wurth Elektronik Application Note - Wireless Energy Transmission Coils as Key Components(Technical Reference)
pdf icon
Wurth Elektronik WE-WPCC Charging Receiver Coil Datasheet(Technical Reference)
pdf icon
Wurth Elektronik Application Note - Wireless Power Charging Coil Changing Considerations(Technical Reference)
pdf icon
Selection and Characteristics of WE-FSFS Ferrite Sheets - Application Note(Technical Reference)
