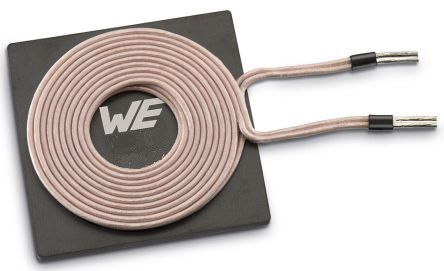

Wurth Elektronik Radial Wireless Charging Transmitter Coil, Ferrite Core, 20.5mm dia., 3A, 83mΩ, 30 Q Factor

760308101105 Wurth Elektronik Radial Wireless Charging Transmitter Coil, Ferrite Core, 20.5mm dia., 3A, 83mΩ, 30 Q Factor
760308101105 Wurth Elektronik Radial Wireless Charging Transmitter Coil, Ferrite Core, 20.5mm dia., 3A, 83mΩ, 30 Q Factor
Wurth Elektronik

Product Information

Function:
Transmitter
Diameter:
20.5 mm
Inductance Tolerance:
±10 %
Minimum Quality Factor:
30
Maximum DC Resistance:
83mΩ
Maximum DC Current:
3A
Series:
WE-WPCC
Termination Style:
Radial
Height:
2.8mm
Width:
20.5 mm
Length:
49mm
Standards/Approvals:
EN61760-1:2006, DIN ISO 2768-1m
Core Material:
Ferrite
Inductance:
3.3 μH
Maximum Self Resonant Frequency:
20MHz
Product Type:
Wireless Charging Coil
Maximum Operating Temperature:
105°C
Minimum Operating Temperature:
-20°C
Mount Type:
Radial
RoHs Compliant
Checking for live stock

This is Radial Wireless Charging Transmitter Coil Ferrite Core 20.5mm dia. 3A 83mΩ 30 Q Factor manufactured by Wurth Elektronik. The manufacturer part number is 760308101105. It performs basic function of transmitter. Its diameter is 20.5 mm. It has a standard ±10 % inductance tolerance . It has minimum 30 quality factors. It allows up to 83mω maximum DC resistance. While it carries 3a of maximum DC current. The product we-wpcc, is a highly preferred choice for users. Moreover, it has radial terminal style. In addition, the height is 2.8mm. Furthermore, the product is 20.5 mm wide. Its accurate length is 49mm. The core is manufactured from highly durable and reliable ferrite materials. The product has a 3.3 μh inductance value. It provides 20mhz of maximum self-resonant frequency. wireless charging coil is a versatile product designed to provide user-defined applications. It has a maximum operating temperature of 105°c. Whereas, the minimum operating temperature of the product is -20°c. It has a radial type mount .

pdf icon
Wurth Elektronik Application Note - High Power Wireless Power Transfer for the Industrial Environment(Technical Reference)
pdf icon
Wurth Elektronik Application Note - Wireless Energy Transmission Coils as Key Components(Technical Reference)
pdf icon
Wurth Elektronik Application Note - Wireless Power Charging Coil Changing Considerations(Technical Reference)
pdf icon
Selection and Characteristics of WE-FSFS Ferrite Sheets - Application Note(Technical Reference)
pdf icon
Wurth Elektronik WE-WPCC Charging Transmitter Coil Datasheet(Technical Reference)
