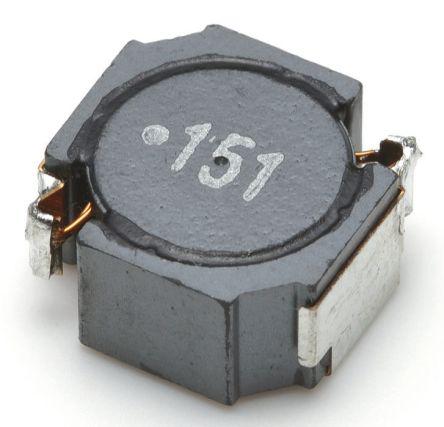

Image is for illustrative purposes only.
Please refer to product description.

manufacturer logo

Manufacturer : TDK
Manufacturer Part No : VLF12060T-220M4R1
Enrgtech Part No : ET17544699
Product Range : PolySwitch RXEF Series

TDK Shielded Wire-wound SMD Inductor 22 μH ±20% Wire-Wound 4.2A Idc

Inductor, VLF12060 Series Small-size, low-profile design Ideal for mobile phone DC-DC converter choke coil TDK Non Standard SMT Inductors (Chokes)

Product Information

Maximum DC Resistance : 36mΩ
Inductor Construction : Wire-Wound
Dimensions : 12 x 11.7 x 6mm
Shielded : Yes
Maximum Operating Temperature : +105°C
Length : 12mm
Height : 6mm
Maximum DC Current : 4.2A
Depth : 11.7mm
Inductance : 22 μH
Tolerance : ±20%
Minimum Operating Temperature : -40°C
rohs : RoHS Certificate of Compliance

Technical Documents


Availability:
0
in stock
Check now

Rate:
  • 5-45
    +
    £ 1.101
  • 50-245
    +
    £ 0.740
  • 250-495
    +
    £ 0.683

Qty:
