Name: B82559A9203A025, TDK
Brand: TDK
SKU: ET16938137
Price: 2.89 GBP
Availability: InStock

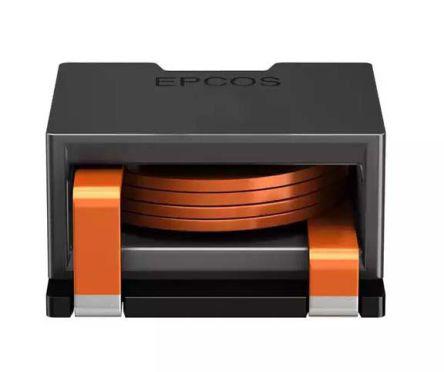

B82559A9203A025 TDK B82559A025 Series Shielded Wire-wound SMD Inductor with a Ferrite Core, 20 μH ±7% Self-Leaded 15A Idc

(0)

Product Information

Maximum DC Resistance:

3.25mΩ

Inductor Construction:

Self-Leaded

Dimensions:

25.3 x 23.5 x 14.6mm

Shielded:

Yes

Series:

B82559A025

Length:

25.3mm

Height:

14.6mm

Maximum DC Current:

15A

Depth:

23.5mm

Core Material:

Ferrite

Inductance:

20 μH

Maximum Self Resonant Frequency:

>2MHz

Checking for live stock

This is B82559A025 Series Shielded Wire-wound SMD Inductor with a Ferrite Core 20 μH ±7% Self-Leaded 15A Idc manufactured by TDK. The manufacturer part number is B82559A9203A025. It allows up to 3.25mω maximum DC resistance. The inductor is designed as self-leaded inductor. The given dimensions of the product include 25.3 x 23.5 x 14.6mm. Shielding Options yes. The product b82559a025, is a highly preferred choice for users. Its accurate length is 25.3mm. In addition, the height is 14.6mm. While it carries 15a of maximum DC current. The product comes in 23.5mm depth. The core is manufactured from highly durable and reliable ferrite materials. The product has a 20 μh inductance value. It provides >2mhz of maximum self-resonant frequency. It has a maximum operating temperature of +125°c. It features ±7% of tolerance value. Whereas, the minimum operating temperature of the product is -40°c.

Datasheet(Technical Reference)

PCN(Technical Reference)

Your Rating

Reviews

Be the first to review.

FAQs

Yes. You can also search B82559A9203A025 on website for other similar products.

We accept all major payment methods for all products including ET16938137. Please check your shopping cart at the time of order.

You can order TDK brand products with B82559A9203A025 directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.

Yes. Our products in Wire-Wound Surface Mount Inductors category are shipped in lowest possible time.

You will get a confirmation email regarding your order of TDK B82559A025 Series Shielded Wire-wound SMD Inductor with a Ferrite Core, 20 μH ±7% Self-Leaded 15A Idc. You can also check on our website or by contacting our customer support team for further order details on TDK B82559A025 Series Shielded Wire-wound SMD Inductor with a Ferrite Core, 20 μH ±7% Self-Leaded 15A Idc.

We use our internationally recognized delivery partners UPS/DHL. Collection of ET16938137 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "TDK" products on our website by using Enrgtech's Unique Manufacturing Part Number ET16938137.

Yes. We ship B82559A9203A025 Internationally to many countries around the world.
