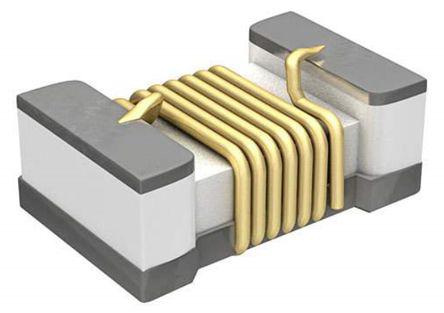

Murata LQW15A Series Type 402 Wire-wound SMD Inductor with a Ferrite Core, 22 nH ±5% Wire-Wound 310mA Idc Q:25

LQW15AN22NJ00D Murata LQW15A Series Type 402 Wire-wound SMD Inductor with a Ferrite Core, 22 nH ±5% Wire-Wound 310mA Idc Q:25
Murata

Product Information

Maximum DC Resistance:
300mΩ
Inductor Construction:
Wire-Wound
Dimensions:
1 x 0.6 x 0.5mm
Maximum DC Current:
310mA
Series:
LQW15A
Minimum Quality Factor:
25
Length:
1mm
Height:
0.5mm
Depth:
0.6mm
Core Material:
Ferrite
Inductance:
22 nH
Maximum Self Resonant Frequency:
4GHz
Maximum Operating Temperature:
+125°C
Tolerance:
±5%
Minimum Operating Temperature:
-55°C
Package/Case:
0402 (1005M)
RoHs Compliant
Checking for live stock

This is LQW15A Series Type 402 Wire-wound SMD Inductor with a Ferrite Core 22 nH ±5% Wire-Wound 310mA Idc Q:25 manufactured by Murata. The manufacturer part number is LQW15AN22NJ00D. It allows up to 300mω maximum DC resistance. The inductor is designed as wire-wound inductor. The given dimensions of the product include 1 x 0.6 x 0.5mm. While it carries 310ma of maximum DC current. The product lqw15a, is a highly preferred choice for users. It has minimum 25 quality factors. Its accurate length is 1mm. In addition, the height is 0.5mm. The product comes in 0.6mm depth. The core is manufactured from highly durable and reliable ferrite materials. The product has a 22 nh inductance value. It provides 4ghz of maximum self-resonant frequency. It has a maximum operating temperature of +125°c. It features ±5% of tolerance value. Whereas, the minimum operating temperature of the product is -55°c. Concerning its package and casing, it is 0402 (1005m).

pdf icon
Chip Coils ( LQW15A_ 00 Series( 0402 size)(Technical Reference)
