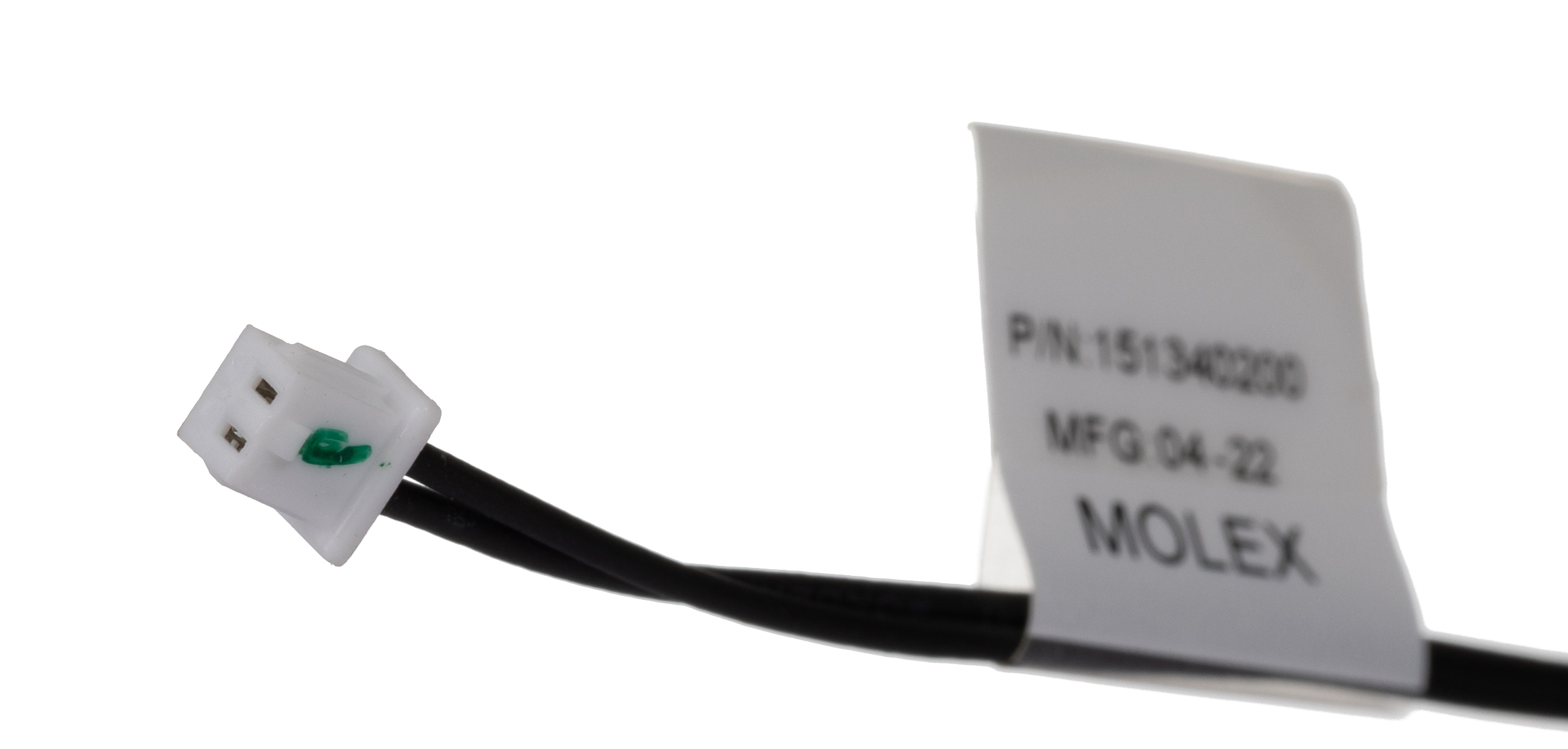

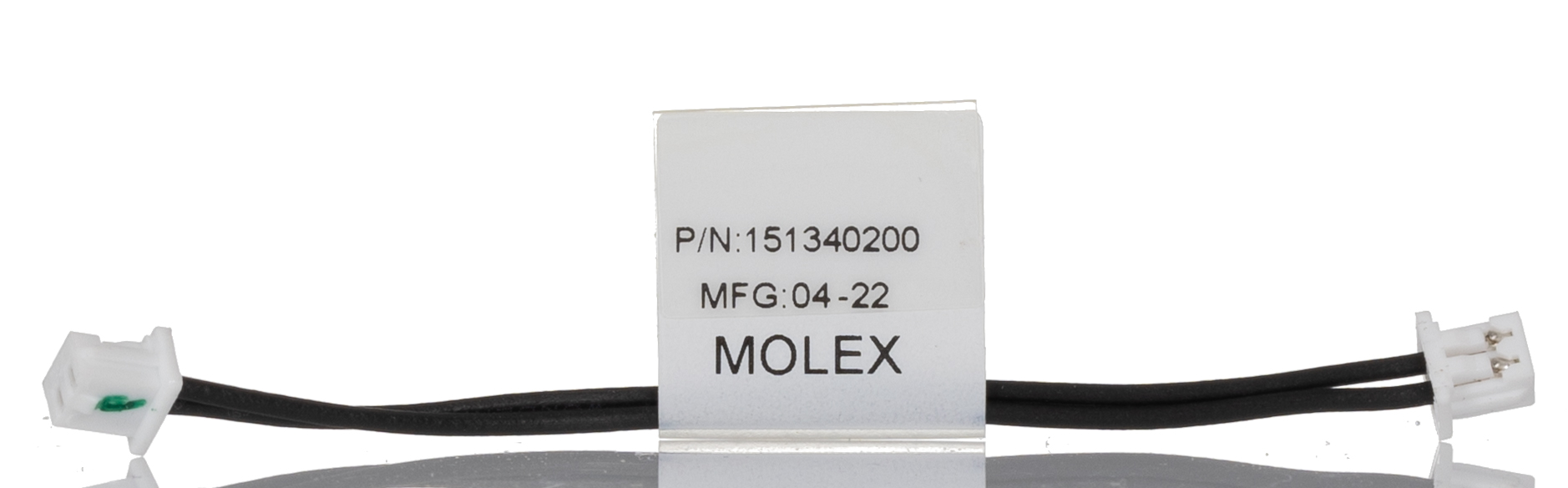

Molex PicoBlade 15134 Series Number Wire to Board Cable Assembly 1 Row, 2 Way 1 Row 2 Way, 50mm

Enrgtech Part No: ET16777636
|
Manufacturer Part No:
15134-0200
|
Manufacturer: Molex

15134-0200 Molex PicoBlade 15134 Series Number Wire to Board Cable Assembly 1 Row, 2 Way 1 Row 2 Way, 50mm

Product Information

Current Rating:

1 A

Connector 2 Number of Rows:

Connector 2 Housing Gender:

Male

Connector 1 Number of Contacts:

Operating Temperature Range:

-40 → +85 °C

Contact Plating:

Tin

Voltage Rating:

125 V

Connector 1 Gender:

Female

Connector 1 Number of Rows:

Series Number:

15134

Connector 2 Gender:

Female

Connector 2 Number of Contacts:

Checking for live stock

The Molex 15134-0200 PicoBlade cable assembly offers a reliable two-way connection in a single row, making it ideal for compact electronic assemblies. Its 50mm length allows precise wire-to-board connections in tight spaces, making it perfect for sensor modules, microcontrollers, and control boards. Additionally, this wire-to-board assembly ensures stable electrical contact and low resistance. It supports accurate signal transmission for LEDs, small actuators, and electronic components in both industrial and consumer applications.

Easy Integration and Installation

The Molex 15134-0200 is engineered for simple and secure installation, reducing assembly time. Its plug-and-play design ensures reliable mating with compatible headers, helping users maintain high-quality connections without complex procedures.

Durable Construction for Long-Term Use

Built from high-quality materials, this cable assembly withstands repeated insertion cycles and mechanical stress. Its robust design ensures consistent performance and reduces the risk of connection failure in densely packed electronics or automation modules.

Applicable Areas of the Molex Wire to Board Cable Assembly

Ideal for compact electronic devices, sensor systems, and low-current automation setups, the Molex 15134-0200 PicoBlade 2-way cable assembly enables precise and reliable interconnections.

Built to Meet Your Assembly Needs

Buy this PicoBlade cable assembly to ensure consistent, high-quality connections in your projects. Its combination of compact size, reliable contacts, and easy installation makes it a practical assembly for professional electronics and automation applications.

PicoBlade™ Standard Cable Assemblies(Technical Reference)

PicoBlade Wire to Board Cable Assembly, 2P - Drawing(Technical Reference)

Datasheet(Datasheets)
