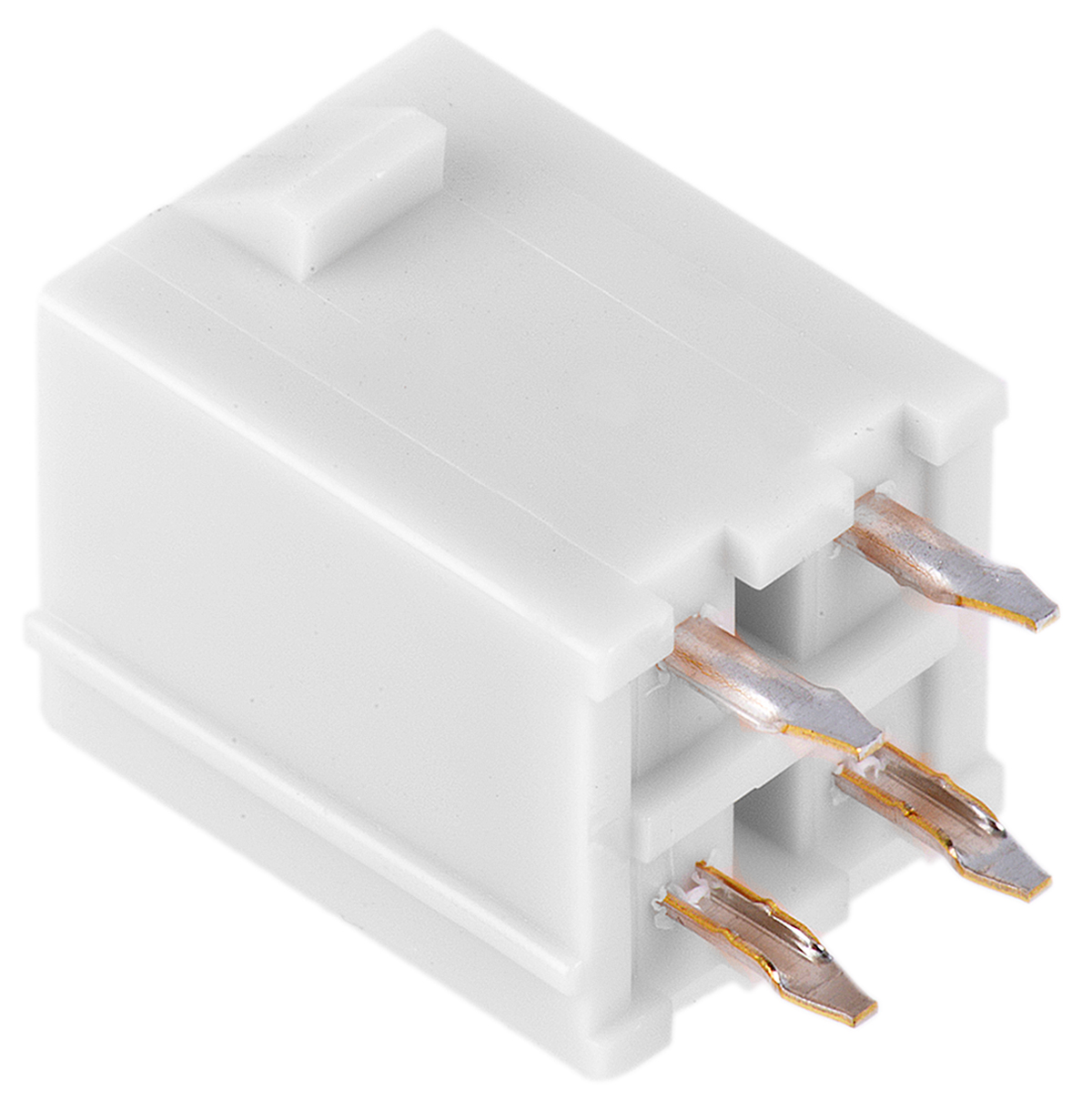

Molex Mini-Fit Jr 5566, 4.2mm Pitch, 4 Way, 2 Row Male PCB Header

Enrgtech Part No: ET16778007
|
Manufacturer Part No:
39-28-8040
|
Manufacturer: Molex

39-28-8040 Molex Mini-Fit Jr 5566, 4.2mm Pitch, 4 Way, 2 Row Male PCB Header

Product Information

Mounting Type:

Through Hole

Gender:

Male

Body Orientation:

Straight

Pitch:

4.2mm

Housing Material:

Nylon

Width:

12.8mm

Length:

10mm

Number of Rows:

Series:

Mini-Fit Jr

For Use With:

Mini-Fit Jr. Cable Assembly Series 245135, Mini-Fit Jr. Receptacle Housing Series 5557, Mini-Fit Jr. TPA Cable Assembly Series 45135

Number of Contacts:

Checking for live stock

This is Mini-Fit Jr 5566 4.2mm Pitch 4 Way 2 Row Male PCB Header manufactured by Molex. The manufacturer part number is 39-28-8040. The product is available in through hole configuration. In addition, male is the available "Gender" of the product. It has straight body orientation. Moreover, the product is 4.2mm. The product also features robust nylon housing material. Furthermore, the product is 12.8mm wide. Its accurate length is 10mm. It comes in 2 of rows. The product mini-fit jr, is a highly preferred choice for users. The product is highly suitable for mini-fit jr. cable assembly series 245135, mini-fit jr. receptacle housing series 5557, mini-fit jr. tpa cable assembly series 45135. The product contains 4 contacts.

Molex Mini-Fit Connector Datasheet(Technical Reference)

FiT Families(Technical Reference)

Application Specification(Technical Reference)

Product Specification(Technical Reference)

Line Drawing(Technical Reference)

Datasheet(Technical Reference)

Product Reference Guide(Technical Reference)
