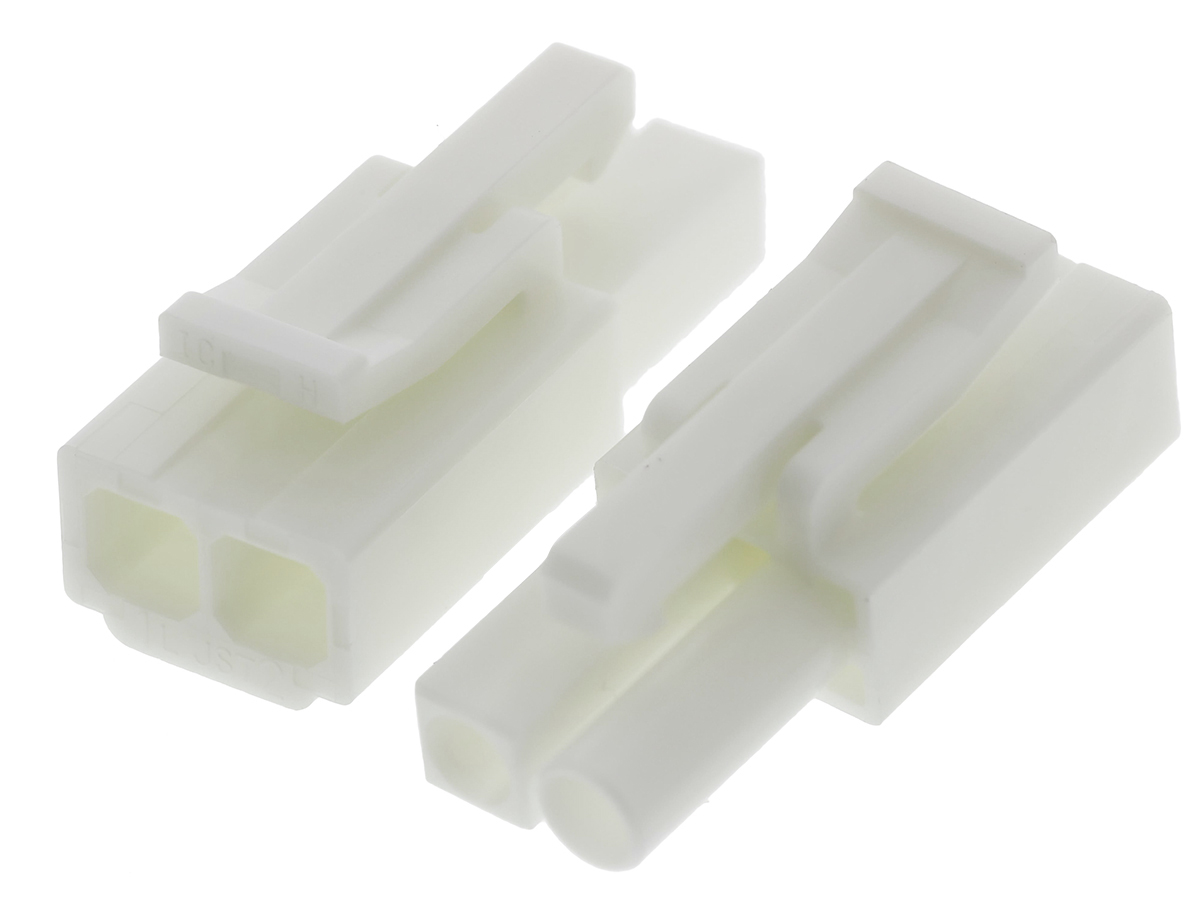

JST ELP-02V, 2 Way, 1 Row Male Connector Housing

  • Enrgtech Part No: ET13855763
  • |
  • Manufacturer Part No:

    ELP-02V

  • |
  • Manufacturer: JST
ELP-02V JST , 2 Way, 1 Row Male Connector Housing
JST

Product Information

Mounting Type:
Cable Mount
Gender:
Male
Body Orientation:
Straight
Pitch:
4.5mm
Housing Material:
Nylon
Width:
5.8mm
Length:
10.3mm
Number of Rows:
1
Series:
EL
For Use With:
4.5 mm Disconnectable Crimp Wire-to-Wire Connector
Number of Contacts:
2
RoHs Compliant
Checking for live stock

The JST ELP-02V is a refined 2-way, 1-row male connector housing built for electrical and electronic applications. Connector housings play a crucial part in securely holding and aligning male and female connectors, facilitating the connection of wires, and ensuring proper electrical contact. The ELP-02V is part of the JST EL Series and is known for its reliability and versatility. Its compact design, durable construction, and user-friendly features make it a favoured option for professionals in the electrical and electronics industries.

  • Two-Way Configuration

The ELP-02V connector housing accommodates two contacts or pins in a single row. This configuration is perfect for applications that require a simple and straightforward connection between two wires or components.

Where Can the JST ELP-02V, 2-Way, 1-Row Male Connector Housing Be Used?

The JST ELP-02V male connector housing is widely used in various electrical and electronic applications. Some typical applications include:

  • PCB Connections: It connects wires and components on printed circuit boards.
  • Wire-to-Wire Connections: The housing facilitates secure and reliable connections between wires, making it suitable for harness assembly.
  • Consumer Electronics: The ELP-02V is commonly used in consumer electronics devices such as audio equipment, televisions, and appliances.
  • Automotive Electronics: It finds applications in automotive wiring and electrical systems.
  • Industrial Equipment: It is used in industrial control panels, machinery, and automation systems.

Salient Features and Benefits of the Male Connector

  • The primary function of this connector housing is to securely hold male connectors or pins, protecting them from damage and providing proper alignment for mating with female connectors.
  • The housing helps prevent accidental disconnections and ensures a stable electrical connection.
  • JST manufactures the ELP-02V connector housing using durable and high-quality materials, ensuring long-lasting performance even in demanding environments.
  • The compact and space-saving design of the ELP-02V is beneficial for applications with limited available space.
  • Its small footprint allows for efficient use of space on PCBs (Printed Circuit Boards) and in electrical enclosures.
  • The ELP-02V connector housing is user-friendly and easy to work with.
  • It features guides and polarising tabs that aid in correct alignment and prevent improper connections.
