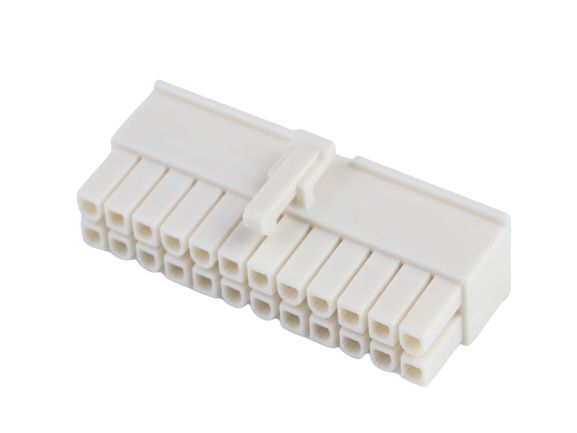

Molex Mini-Fit Jr 5557, 4.2mm Pitch, 24 Way, 2 Row Female Connector Housing

Enrgtech Part No: ET13834272
|
Manufacturer Part No:
39-01-2245
|
Manufacturer: Molex

39-01-2245 Molex Mini-Fit Jr 5557, 4.2mm Pitch, 24 Way, 2 Row Female Connector Housing

Product Information

Mounting Type:

Cable Mount

Gender:

Female

Body Orientation:

Straight

Pitch:

4.2mm

Housing Material:

Nylon

Width:

15.1mm

Length:

51.6mm

Number of Rows:

Series:

Mini-Fit Jr

For Use With:

Mini-Fit Jr. Receptacle

Number of Contacts:

Checking for live stock

The Molex 39-01-2245 is a 24-way, dual-row female receptacle housing from the Mini-Fit Jr. 5557 series, specified at a 4.2 mm (0.165 in) pitch to support mid-range power and signal interconnect applications. Designed to accept Mini-Fit Jr. crimp socket contacts, it supports up to 600 V and approximately 13 A per contact under typical conditions. The housing is moulded from UL94V-0-rated nylon (natural colour) for robust insulation and is rated for operation from -40 °C to +105 °C.

Standout Features and Benefits of Choosing the Molex 24-Way, 2 Row Female Connector Housing

Dual-row, 24-position configuration enables high-density connectivity in compact form.
4.2 mm pitch spacing supports reliable power and signal routing in moderate currents.
UL94V-0 nylon housing with a natural finish offers flame-retardant properties and insulation integrity.
Accepts Mini-Fit Jr. crimp socket terminals for consistent, low-resistance contact.
Withstands a wide operating range (-40 °C to +105 °C) for industrial and commercial use.
Compatible with standard Mini-Fit Jr. plug/receptacle pairs for flexible system design.

Reliable Interconnect Performance

This housing has been engineered for reliable interconnect systems that require compact size and current-handling capability. The 4.2 mm pitch helps balance between high signal/power density and manageable assembly. The UL94V-0 nylon body withstands elevated temperatures and potential exposure to mechanical stress, while the dual-row layout maximises circuit count without increasing footprint. Ideal for applications where serviceability, standardisation, and performance matter.

Wide Application Range

Power supply and distribution modules inside computing, telecom or industrial systems.
Internal wiring harnesses.
OEM equipment.
Signal and low-to-moderate power applications in automation, instrumentation or transportation.
Enclosures where compact, standardised connector housings reduce design complexity.
