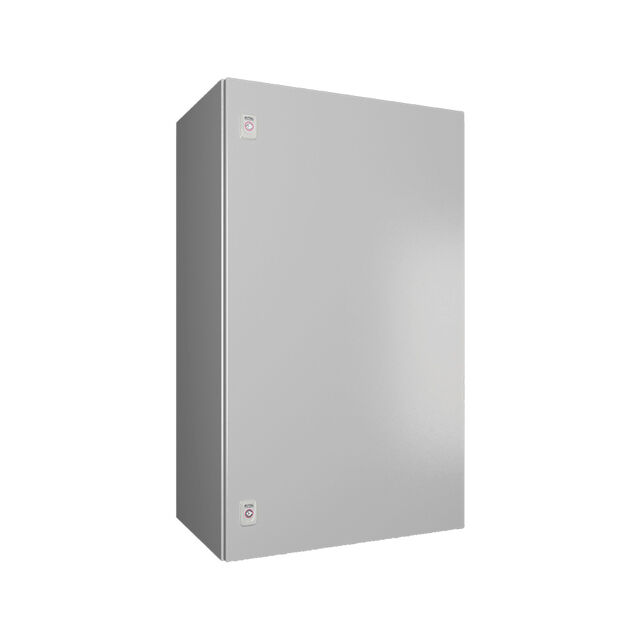

Rittal Steel, Enclosure, IP66, 400mm x 1000 mm x 600 mm

1091000 Rittal Steel, Enclosure, IP66, 400mm x 1000 mm x 600 mm
1091000
Rittal

Product Information

RAL Code:
RAL 7035
External Mounting Type:
Bracket
Standards Met:
UL
IP Rating:
IP66
Series:
AX
Colour:
RAL7035
Gland Plate:
Yes
Chassis Plate:
No
External Depth:
400mm
Door Lock Type:
Cam
Body Material:
Sheet Steel
External Height:
1000 mm
Fixing Kit:
No
External Width:
600 mm
IK Rating:
IK10
Ratings:
IP66, NEMA 1,3R,4,12
Material:
Metal, Steel
RoHS Status:
ROHS3 Compliant
Thickness:
0.059" (1.50mm)
title:
1091000
Area (L x W):
930in² (6000cm²)
REACH Status:
REACH info available upon request
Container Type:
Enclosure
Material Flammability Rating:
-
Size / Dimension:
39.370" L x 23.622" W (1000.00mm x 600.00mm)
standardLeadTime:
5 Weeks
Shipping Info:
-
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Features:
-
Weight:
-
Color:
Light Gray
Series:
AX
Height:
15.748" (400.00mm)
Packaging:
Box
Design:
Hinged Door
RoHs Compliant
Checking for live stock

This is Steel Enclosure IP66 400mm x 1000 mm x 600 mm manufactured by Rittal. The manufacturer part number is 1091000. Its RAL code is ral 7035 . Its external mounting is of bracket type . The product complies with all safety standards, such as ul. It is IP rated with ip66. The product ax, is a highly preferred choice for users. It has a decent ral7035 colour. It contains a gland plate yes . It includes a chassis plate no . It has an external depth of 400mm. It has a cam type door lock . The product's body is nicely designed from sheet steel materials. While its external height is 1000 mm. It has a fixing kit no . The product is 600 mm wide. It has a standard ik10 IK rating . It is rated with ip66, nema 1,3r,4,12. The product is made from highly stable and reliable metal, steel. The product is rohs3 compliant. It is 0.059" (1.50mm) thick. Features a typical area dimensions of 930in² (6000cm²). In addition, it is reach info available upon request. A type of enclosure container. The product's diameters include 39.370" l x 23.622" w (1000.00mm x 600.00mm). It has a long 5 weeks standard lead time. Its typical moisture sensitivity level is 1 (unlimited). It has a classic light gray colour. In addition, the height is 15.748" (400.00mm). In addition, box is the available packaging type of the product. Design Information: hinged door.

pdf icon
Instruction Sheet - 1091000(Technical Reference)
pdf icon
Datasheet - 1091000(Technical Reference)
pdf icon
Brochure - AX KX System Perfection(Technical Reference)
