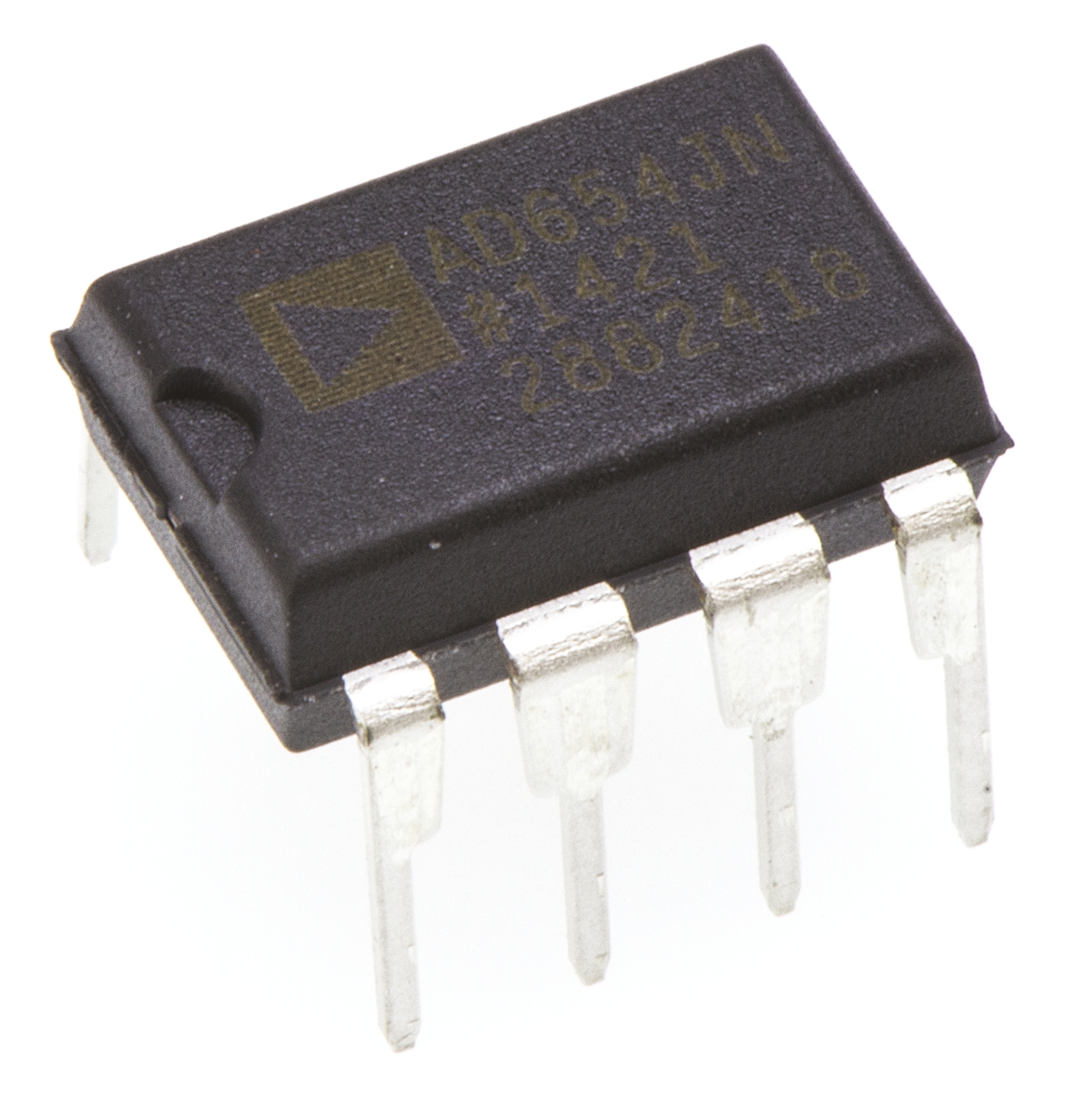

AD654JNZ, Voltage to Frequency Converter, Non-Synchronous, 500kHz ±0.4%FSR, 8-Pin PDIP
Product Information
Converter Type:
Non-Synchronous
Dimensions:
9.27 x 7.24 x 3.43mm
Mounting Type:
Through Hole
Power Supply Type:
Dual, Single
Typical Dual Supply Voltage:
±12 V, ±15 V, ±9 V
Height:
3.43mm
Typical Single Supply Voltage:
12 V, 15 V, 18 V, 24 V, 28 V, 5 V, 9 V
Width:
7.24mm
Length:
9.27mm
Package Type:
PDIP
Converter Function:
VFC
Minimum Operating Temperature:
-40 °C
Full Scale Frequency:
500kHz
Maximum Operating Temperature:
+85 °C
Linearity Error:
±0.4%FSR
Pin Count:
8
Checking for live stock
FAQs
Yes. You can also search AD654JNZ on website for other similar products.
We accept all major payment methods for all products including ET16757215. Please check your shopping cart at the time of order.
You can order Analog Devices brand products with AD654JNZ directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in Voltage-to-Frequency & Frequency-to-Voltage Converters category are shipped in lowest possible time.
You will get a confirmation email regarding your order of AD654JNZ, Voltage to Frequency Converter, Non-Synchronous, 500kHz ±0.4%FSR, 8-Pin PDIP. You can also check on our website or by contacting our customer support team for further order details on AD654JNZ, Voltage to Frequency Converter, Non-Synchronous, 500kHz ±0.4%FSR, 8-Pin PDIP.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET16757215 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "Analog Devices" products on our website by using Enrgtech's Unique Manufacturing Part Number ET16757215.
Yes. We ship AD654JNZ Internationally to many countries around the world.
This is Voltage to Frequency Converter Non-Synchronous 500kHz ±0.4%FSR 8-Pin PDIP manufactured by Analog Devices. The manufacturer part number is AD654JNZ. It is designed with standard non-synchronous type converter . The given dimensions of the product include 9.27 x 7.24 x 3.43mm. The product is available in through hole configuration. It is a type of dual, single power supply. While ±12 v, ±15 v, ±9 v is the typical dual supply voltage. In addition, the height is 3.43mm. It has a typical single supply voltage of 12 v, 15 v, 18 v, 24 v, 28 v, 5 v, 9 v. Furthermore, the product is 7.24mm wide. Its accurate length is 9.27mm. The package is a sort of pdip. It has vfc converter function . Whereas, the minimum operating temperature of the product is -40 °c. It has a full scale frequency about 500khz . It has a maximum operating temperature of +85 °c. It has ±0.4%fsr of linearity error . It contains 8 pins.
