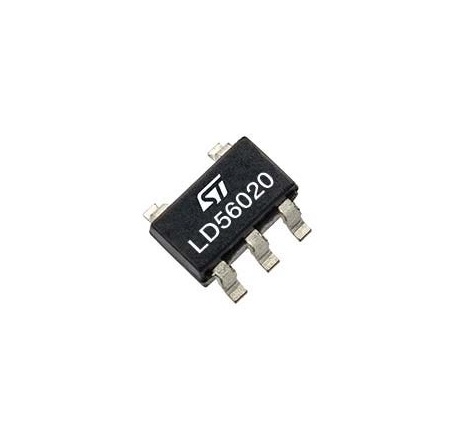

STMicroelectronics LD56020M100R

LD56020M100R STMicroelectronics
STMicroelectronics

Product Information

HTSUS:
8542.39.0001
RoHS Status:
ROHS3 Compliant
Voltage Dropout (Max):
0.2V @ 200mA
Operating Temperature:
-40°C ~ 125°C (TJ)
Package / Case:
SC-74A, SOT-753
Protection Features:
Over Temperature, Short Circuit
Voltage - Output (Min/Fixed):
1V
Number of Regulators:
1
Output Type:
Fixed
Current - Output:
200mA
Voltage - Input (Max):
5.5V
Voltage - Output (Max):
-
Control Features:
Enable
Current - Quiescent (Iq):
25 µA
Moisture Sensitivity Level (MSL):
1 (Unlimited)
standardLeadTime:
18 Weeks
Mounting Type:
Surface Mount
PSRR:
95dB (1kHz), 90dB ~ 55dB (100Hz ~ 100kHz)
Series:
-
Supplier Device Package:
SOT-23-5
Packaging:
Tape & Reel (TR)
Output Configuration:
Positive
ECCN:
EAR99
Number of Outputs:
1
Load Regulation:
1.5 mV
Line Regulation:
0.01 V
Output Voltage:
1 V
Package Type:
SOT23-5L
Maximum Output Current:
200mA
Pin Count:
5
Accuracy:
±2%
RoHs Compliant
Checking for live stock

This is manufactured by STMicroelectronics. The manufacturer part number is LD56020M100R. Additionally, the product is supplied with 1 outputs. Load Regulation - 1.5 mv. Has a line regulation of 0.01 v. Features a 1 v output voltage. The package is a sort of sot23-5l. Featuring 200ma of maximum output current. It contains 5 pins. It provides high accuracy of ±2%. It is assigned with possible HTSUS value of 8542.39.0001. The product is rohs3 compliant. The product's maximum voltage dropout is 0.2v @ 200ma. The product has -40°c ~ 125°c (tj) operating temperature range. Moreover, the product comes in sc-74a, sot-753. It provides robust protection features, such as over temperature, short circuit. The minimum or fixed output voltage include 1v. Equipped with [Number of Regulator] regulator(s). Furthermore, it has afixed output. While, the output current includes 200ma. Its maximum input voltage is 5.5v. Possible control features include enable. Current - Quiescent of 25 µa. Its typical moisture sensitivity level is 1 (unlimited). It has a long 18 weeks standard lead time. The product is available in surface mount configuration. Additionally, 95db (1khz), 90db ~ 55db (100hz ~ 100khz) is the given PSSR of the product. sot-23-5 is the supplier device package value. In addition, tape & reel (tr) is the available packaging type of the product. It boasts positive output configuration. The product is designated with the ear99 code number.

pdf icon
LD56020(Datasheets)
pdf icon
Datasheet - LD56020M100R(Technical Reference)

Reviews

  • Be the first to review.

FAQs

Yes. You can also search LD56020M100R on website for other similar products.
We accept all major payment methods for all products including ET25461146. Please check your shopping cart at the time of order.
You can order STMicroelectronics brand products with LD56020M100R directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in Voltage Regulators - Linear, Low Drop Out (LDO) Regulators category are shipped in lowest possible time.
You will get a confirmation email regarding your order of STMicroelectronics LD56020M100R. You can also check on our website or by contacting our customer support team for further order details on STMicroelectronics LD56020M100R.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET25461146 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "STMicroelectronics" products on our website by using Enrgtech's Unique Manufacturing Part Number ET25461146.
Yes. We ship LD56020M100R Internationally to many countries around the world.
