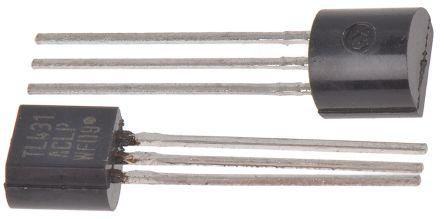

ON Semiconductor TL431ACLPG, Adjustable Shunt Voltage Reference 2.5 - 36V, ±1.0 % 3-Pin, TO-92

Enrgtech Part No: ET16727754
|
Manufacturer Part No:
TL431ACLPG
|
Manufacturer: ON Semiconductor

TL431ACLPG ON Semiconductor , Adjustable Shunt Voltage Reference 2.5 - 36V, ±1.0 % 3-Pin, TO-92

Product Information

Load Regulation:

25 mV

Dimensions:

5.2 x 4.19 x 5.33mm

Mounting Type:

Through Hole

Maximum Operating Temperature:

+70 °C

Line Regulation:

53 mV

Height:

5.33mm

Width:

4.19mm

Length:

5.2mm

Initial Accuracy:

±1.0 %

Package Type:

TO-92

Maximum Output Voltage:

36 V

Minimum Operating Temperature:

0 °C

Checking for live stock

This is Adjustable Shunt Voltage Reference 2.5 - 36V ±1.0 % 3-Pin TO-92 manufactured by ON Semiconductor. The manufacturer part number is TL431ACLPG. Load Regulation - 25 mv. The given dimensions of the product include 5.2 x 4.19 x 5.33mm. The product is available in through hole configuration. It has a maximum operating temperature of +70 °c. Has a line regulation of 53 mv. In addition, the height is 5.33mm. Furthermore, the product is 4.19mm wide. Its accurate length is 5.2mm. Its initial accuracy is approximately ±1.0 % . The package is a sort of to-92. Its output voltage (maximum) includes 36 v. Whereas, the minimum operating temperature of the product is 0 °c. The nominal voltage of the product is 2.5 - 36v. The product has a reference of programmable type. Featuring 100ma of maximum output current. It contains 3 pins. Topology includes shunt.
