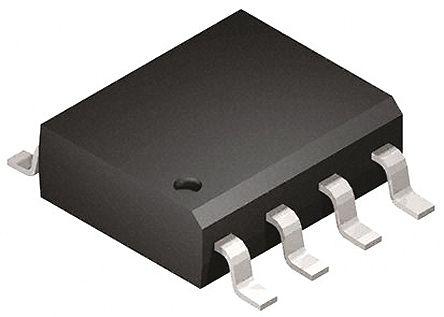

Fairchild Semiconductor FAN3223TMX Dual Full Bridge MOSFET Power Driver, -5 A, 5 A, 4.5 → 18 V, Inverting, SOIC

Enrgtech Part No: ET14154335
|
Manufacturer Part No:
FAN3223TMX_F085
|
Manufacturer: Fairchild Semiconductor

FAN3223TMX_F085 Fairchild Semiconductor FAN3223TMX Dual Full Bridge MOSFET Power Driver, -5 A, 5 A, 4.5 → 18 V, Inverting, SOIC

Product Information

Number of Outputs:

Peak Output Current:

-5 A, 5 A

Dimensions:

4.9 x 3.9 x 1.575mm

Bridge Type:

Full Bridge

Maximum Operating Temperature:

+125 °C

Minimum Operating Supply Voltage:

4.5 V

Number of Drivers:

Height:

1.575mm

Width:

3.9mm

Length:

4.9mm

Package Type:

SOIC

Driver Type:

Low Side

Checking for live stock

This is FAN3223TMX Dual Full Bridge MOSFET Power Driver -5 A 5 A 4.5 → 18 V Inverting SOIC manufactured by Fairchild Semiconductor. The manufacturer part number is FAN3223TMX_F085. Additionally, the product is supplied with 2 outputs. It offers a standard -5 a, 5 a peak output current . The given dimensions of the product include 4.9 x 3.9 x 1.575mm. It contains a/an full bridge type bridge . It has a maximum operating temperature of +125 °c. While its minimum operating supply voltage is 4.5 v. Number of Drivers equals 2. In addition, the height is 1.575mm. Furthermore, the product is 3.9mm wide. Its accurate length is 4.9mm. The package is a sort of soic. It has a/an low side type driver . Whereas, the minimum operating temperature of the product is -40 °c. The product is available in surface mount configuration. Moreover, it has a ttl input logic compatibility . Moreover, it has a/an inverting driver configuration . It contains 8 pins. It has 18 v maximum operating supply voltage.

FAN3223, FAN3224, FAN3225, Dual 4A High-Speed, Low-Side Gate Drivers(Technical Reference)
