Category:
Power MOSFET
Dimensions:
5 x 6.15 x 1.05mm
Maximum Continuous Drain Current:
49 A
Transistor Material:
Si
Width:
6.15mm
Transistor Configuration:
Single
Maximum Drain Source Voltage:
100 V
Package Type:
Power 56
Number of Elements per Chip:
1
Minimum Gate Threshold Voltage:
1V
Maximum Operating Temperature:
+150 °C
Typical Gate Charge @ Vgs:
43 nC @ 10 V
Channel Type:
N
Typical Input Capacitance @ Vds:
2790 pF @ 50 V
Length:
5mm
Pin Count:
8
Typical Turn-Off Delay Time:
35 ns
Mounting Type:
Surface Mount
Channel Mode:
Enhancement
Maximum Power Dissipation:
104 W
Series:
PowerTrench
Maximum Gate Source Voltage:
±20 V
Height:
1.05mm
Typical Turn-On Delay Time:
13 ns
Minimum Operating Temperature:
-55 °C
Maximum Drain Source Resistance:
14 mΩ

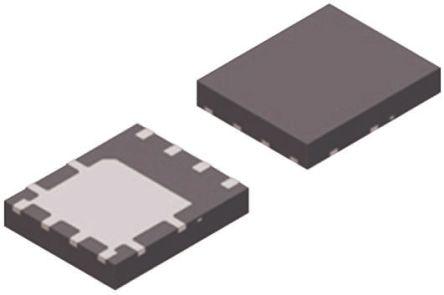

This is Fairchild N-channel MOSFET 49 A 100 V PowerTrench 8-Pin Power 56 manufactured by Fairchild Semiconductor. The manufacturer part number is FDMS86103L. It is of power mosfet category . The given dimensions of the product include 5 x 6.15 x 1.05mm. While 49 a of maximum continuous drain current. The transistor is manufactured from highly durable si material. Furthermore, the product is 6.15mm wide. The product offers single transistor configuration. It has a maximum of 100 v drain source voltage. The package is a sort of power 56. It consists of 1 elements per chip. Whereas its minimum gate threshold voltage includes 1v. It has a maximum operating temperature of +150 °c. With a typical gate charge at Vgs includes 43 nc @ 10 v. The product is available in [Cannel Type] channel. Its typical input capacitance @ Vds is 2790 pf @ 50 v . Its accurate length is 5mm. It contains 8 pins. Whereas, its typical turn-off delay time is about 35 ns . The product is available in surface mount configuration. The product carries enhancement channel mode. Provides up to 104 w maximum power dissipation. The product powertrench, is a highly preferred choice for users. It features a maximum gate source voltage of ±20 v. In addition, the height is 1.05mm. In addition, it has a typical 13 ns turn-on delay time . Whereas, the minimum operating temperature of the product is -55 °c. It provides up to 14 mω maximum drain source resistance.
