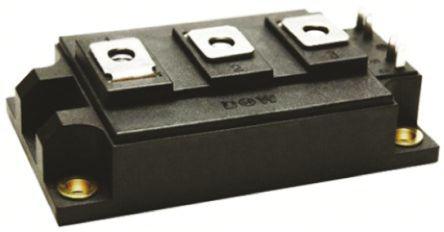

This is 7DM-3 Series IGBT Module 100 A max 1200 V Panel Mount manufactured by MagnaChip. The manufacturer part number is MPMD100B120RH. The product is available in series configuration. The given dimensions of the product include 108.5 x 62.5 x 20.5mm. The product is available in panel mount configuration. Provides up to 780 w maximum power dissipation. The product has a maximum 100 a continuous collector current . Whereas features a 1200 v of collector emitter voltage (max). In addition, the height is 20.5mm. Furthermore, the product is 62.5mm wide. Its accurate length is 108.5mm. It offers a maximum ±20v gate emitter voltage . The package is a sort of 7dm-3. Whereas, the minimum operating temperature of the product is -55 °c. It has about 70khz switching speed . The product is available in [Cannel Type] channel. It has a maximum operating temperature of +150 °c. It contains 7 pins. The product offers series transistor configuration.
For more information please check the datasheets.
