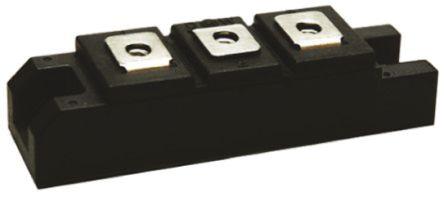

MagnaChip MPKB2SB100U120 Dual Diode Module, Common Anode, 1200V 200A, 110ns, 3-Pin 5DM-1
Product Information
Dimensions:
94 x 27.5 x 22.5mm
Mounting Type:
Panel Mount
Peak Reverse Recovery Time:
110ns
Maximum Continuous Forward Current:
200A
Maximum Operating Temperature:
+150 °C
Peak Non-Repetitive Forward Surge Current:
1.4kA
Maximum Forward Voltage Drop:
2.8V
Height:
22.2mm
Peak Reverse Current:
1mA
Width:
27.5mm
Length:
94mm
Package Type:
5DM-1
Number of Elements per Chip:
2
Minimum Operating Temperature:
-40 °C
Diode Type:
Silicon Junction
Diode Configuration:
Common Anode
Pin Count:
3
Peak Reverse Repetitive Voltage:
1200V
Checking for live stock
FAQs
Yes. You can also search MPKB2SB100U120 on website for other similar products.
We accept all major payment methods for all products including ET13964267. Please check your shopping cart at the time of order.
You can order MagnaChip brand products with MPKB2SB100U120 directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in Unclassified category are shipped in lowest possible time.
You will get a confirmation email regarding your order of MagnaChip MPKB2SB100U120 Dual Diode Module, Common Anode, 1200V 200A, 110ns, 3-Pin 5DM-1. You can also check on our website or by contacting our customer support team for further order details on MagnaChip MPKB2SB100U120 Dual Diode Module, Common Anode, 1200V 200A, 110ns, 3-Pin 5DM-1.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET13964267 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "MagnaChip" products on our website by using Enrgtech's Unique Manufacturing Part Number ET13964267.
Yes. We ship MPKB2SB100U120 Internationally to many countries around the world.
This is Dual Diode Module Common Anode 1200V 200A 110ns 3-Pin 5DM-1 manufactured by MagnaChip. The manufacturer part number is MPKB2SB100U120. The given dimensions of the product include 94 x 27.5 x 22.5mm. The product is available in panel mount configuration. Moreover, it has a peak reverse recovery time about 110ns . Furthermore, its maximum continuous forward current constitutes 200a. It has a maximum operating temperature of +150 °c. Moreover, a bespoke product has 1.4ka peak non-repetitive forward surge current. It features 2.8v of maximum forward voltage drop. In addition, the height is 22.2mm. It has a typical 1ma peak reverse current . Furthermore, the product is 27.5mm wide. Its accurate length is 94mm. The package is a sort of 5dm-1. It consists of 2 elements per chip. Whereas, the minimum operating temperature of the product is -40 °c. It is designed with a silicon junction diode. The diode features a common anode configuration. It contains 3 pins. While having the peak reverse repetitive 1200v.
