Category:
Power MOSFET
Dimensions:
5 x 5 x 0.95mm
Maximum Continuous Drain Current:
46 A
Transistor Material:
Si
Width:
5mm
Transistor Configuration:
Single
Maximum Drain Source Voltage:
40 V
Maximum Gate Threshold Voltage:
2.3V
Maximum Drain Source Resistance:
4.1 mΩ
Package Type:
SOP Advanced
Number of Elements per Chip:
1
Maximum Operating Temperature:
+150 °C
Typical Gate Charge @ Vgs:
90 nC @ 10 V
Channel Type:
N
Typical Input Capacitance @ Vds:
5800 pF @ 10 V
Length:
5mm
Pin Count:
8
Typical Turn-Off Delay Time:
67 ns
Mounting Type:
Surface Mount
Channel Mode:
Enhancement
Maximum Power Dissipation:
45 W
Series:
TPC
Maximum Gate Source Voltage:
±20 V
Height:
0.95mm
Typical Turn-On Delay Time:
15 ns

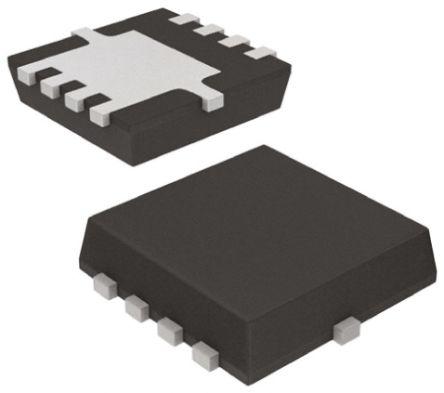

This is N-channel MOSFET 46 A 40 V TPC 8-Pin SOP Advanced manufactured by Toshiba. The manufacturer part number is TPCA8045-H. It is of power mosfet category . The given dimensions of the product include 5 x 5 x 0.95mm. While 46 a of maximum continuous drain current. The transistor is manufactured from highly durable si material. Furthermore, the product is 5mm wide. The product offers single transistor configuration. It has a maximum of 40 v drain source voltage. The product carries 2.3v of maximum gate threshold voltage. It provides up to 4.1 mω maximum drain source resistance. The package is a sort of sop advanced. It consists of 1 elements per chip. It has a maximum operating temperature of +150 °c. With a typical gate charge at Vgs includes 90 nc @ 10 v. The product is available in [Cannel Type] channel. Its typical input capacitance @ Vds is 5800 pf @ 10 v . Its accurate length is 5mm. It contains 8 pins. Whereas, its typical turn-off delay time is about 67 ns . The product is available in surface mount configuration. The product carries enhancement channel mode. Provides up to 45 w maximum power dissipation. The product tpc, is a highly preferred choice for users. It features a maximum gate source voltage of ±20 v. In addition, the height is 0.95mm. In addition, it has a typical 15 ns turn-on delay time .
