Dimensions:
3.2 x 3.2 x 0.8mm
Maximum Continuous Drain Current:
42 A
Transistor Material:
Si
Width:
3.2mm
Transistor Configuration:
Single
Maximum Drain Source Voltage:
30 V
Maximum Gate Threshold Voltage:
2.7V
Package Type:
PowerDFN33
Number of Elements per Chip:
1
Maximum Operating Temperature:
+150 °C
Typical Gate Charge @ Vgs:
15.9 nC @ 10 V
Channel Type:
N
Typical Input Capacitance @ Vds:
1019 pF @ 15 V
Length:
3.2mm
Pin Count:
8
Forward Transconductance:
19S
Typical Turn-Off Delay Time:
25.1 ns
Mounting Type:
Surface Mount
Channel Mode:
Enhancement
Maximum Power Dissipation:
25.2 W
Maximum Gate Source Voltage:
-20 V, +20 V
Height:
0.8mm
Typical Turn-On Delay Time:
7.5 ns
Minimum Operating Temperature:
-55 °C
Forward Diode Voltage:
1.1V
Maximum Drain Source Resistance:
11.7 mΩ

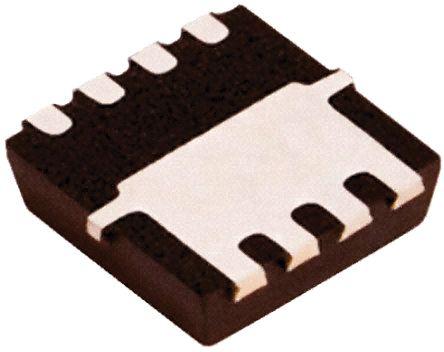

This is N-channel MOSFET 42 A 30 V 8-Pin PowerDFN33 manufactured by MagnaChip. The manufacturer part number is MDV1524URH. The given dimensions of the product include 3.2 x 3.2 x 0.8mm. While 42 a of maximum continuous drain current. The transistor is manufactured from highly durable si material. Furthermore, the product is 3.2mm wide. The product offers single transistor configuration. It has a maximum of 30 v drain source voltage. The product carries 2.7v of maximum gate threshold voltage. The package is a sort of powerdfn33. It consists of 1 elements per chip. It has a maximum operating temperature of +150 °c. With a typical gate charge at Vgs includes 15.9 nc @ 10 v. The product is available in [Cannel Type] channel. Its typical input capacitance @ Vds is 1019 pf @ 15 v . Its accurate length is 3.2mm. It contains 8 pins. The forward transconductance is 19s . Whereas, its typical turn-off delay time is about 25.1 ns . The product is available in surface mount configuration. The product carries enhancement channel mode. Provides up to 25.2 w maximum power dissipation. It features a maximum gate source voltage of -20 v, +20 v. In addition, the height is 0.8mm. In addition, it has a typical 7.5 ns turn-on delay time . Whereas, the minimum operating temperature of the product is -55 °c. Its forward diode voltage is 1.1v . It provides up to 11.7 mω maximum drain source resistance.
