Category:
Power MOSFET
Dimensions:
3.3 x 3.3 x 1mm
Maximum Continuous Drain Current:
48 A
Transistor Material:
Si
Width:
3.3mm
Transistor Configuration:
Single
Maximum Drain Source Voltage:
25 V
Maximum Gate Threshold Voltage:
1.7V
Package Type:
DFN
Number of Elements per Chip:
1
Maximum Operating Temperature:
+150 °C
Typical Gate Charge @ Vgs:
7.5 nC @ 4.5 V
Channel Type:
N
Typical Input Capacitance @ Vds:
580 pF @ 12.5 V
Length:
3.3mm
Pin Count:
8
Typical Turn-Off Delay Time:
5.3 ns
Mounting Type:
Surface Mount
Channel Mode:
Enhancement
Maximum Power Dissipation:
1.8 W
Series:
MCP87
Maximum Gate Source Voltage:
-8 V, 10 V
Height:
1mm
Typical Turn-On Delay Time:
2.5 ns
Minimum Operating Temperature:
-55 °C
Maximum Drain Source Resistance:
12 mΩ

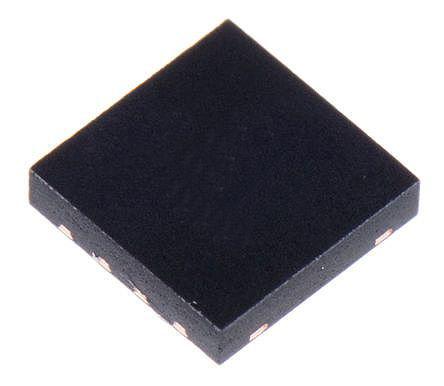

This is N-channel MOSFET 48 A 25 V MCP87 8-Pin DFN manufactured by Microchip. The manufacturer part number is MCP87090T-U/LC. It is of power mosfet category . The given dimensions of the product include 3.3 x 3.3 x 1mm. While 48 a of maximum continuous drain current. The transistor is manufactured from highly durable si material. Furthermore, the product is 3.3mm wide. The product offers single transistor configuration. It has a maximum of 25 v drain source voltage. The product carries 1.7v of maximum gate threshold voltage. The package is a sort of dfn. It consists of 1 elements per chip. It has a maximum operating temperature of +150 °c. With a typical gate charge at Vgs includes 7.5 nc @ 4.5 v. The product is available in [Cannel Type] channel. Its typical input capacitance @ Vds is 580 pf @ 12.5 v . Its accurate length is 3.3mm. It contains 8 pins. Whereas, its typical turn-off delay time is about 5.3 ns . The product is available in surface mount configuration. The product carries enhancement channel mode. Provides up to 1.8 w maximum power dissipation. The product mcp87, is a highly preferred choice for users. It features a maximum gate source voltage of -8 v, 10 v. In addition, the height is 1mm. In addition, it has a typical 2.5 ns turn-on delay time . Whereas, the minimum operating temperature of the product is -55 °c. It provides up to 12 mω maximum drain source resistance.
