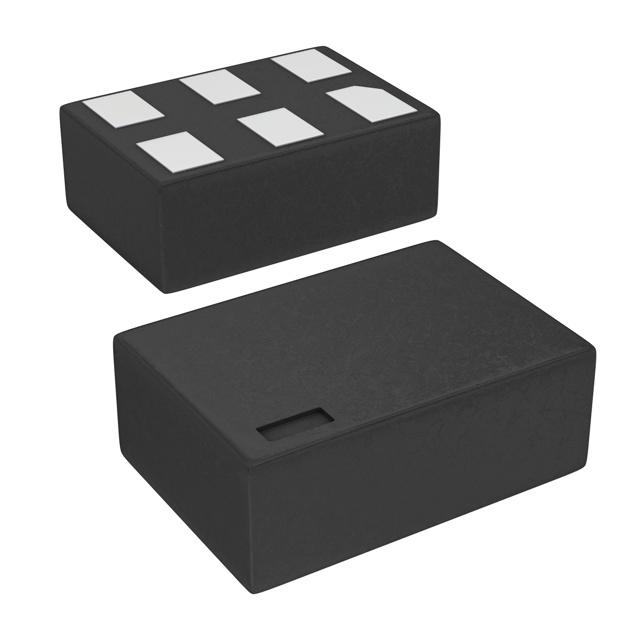

SMC Diode Solutions EGUARD0522P

EGUARD0522P SMC Diode Solutions
SMC Diode Solutions

Product Information

Voltage - Clamping (Max) @ Ipp:
17V
HTSUS:
8541.10.0080
RoHS Status:
ROHS3 Compliant
Operating Temperature:
-55°C ~ 150°C (TJ)
Package / Case:
6-UFDFN
Type:
Steering (Rail to Rail)
REACH Status:
REACH Affected
Voltage - Breakdown (Min):
6V
Applications:
HDMI
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Unidirectional Channels:
2
standardLeadTime:
14 Weeks
Current - Peak Pulse (10/1000µs):
7A (8/20µs)
Voltage - Reverse Standoff (Typ):
5V (Max)
Mounting Type:
Surface Mount
Series:
-
Supplier Device Package:
6-DFNWB (1.45x1)
Packaging:
Tape & Reel (TR)
Capacitance @ Frequency:
0.65pF @ 1MHz
Power Line Protection:
No
Power - Peak Pulse:
150W
Base Product Number:
EGUARD0522
ECCN:
EAR99
Checking for live stock

This is manufactured by SMC Diode Solutions. The manufacturer part number is EGUARD0522P. The maximum clamping voltage is 17v. It is assigned with possible HTSUS value of 8541.10.0080. The product is rohs3 compliant. The product has -55°c ~ 150°c (tj) operating temperature range. Moreover, the product comes in 6-ufdfn. It comes in steering (rail to rail) configuration. In addition, it is reach affected. The minimum breakdown voltage is 6v. The product is widely employed in hdmi. Its typical moisture sensitivity level is 1 (unlimited). It has 2 unidirectional channels. It has a long 14 weeks standard lead time. The peak pulse of the product is given as 7a (8/20µs). Provide with the typical reverse standoff voltage of 5v (max). The product is available in surface mount configuration. 6-dfnwb (1.45x1) is the supplier device package value. In addition, tape & reel (tr) is the available packaging type of the product. It has a nominal capacitance and frequency values of 0.65pf @ 1mhz. Power Line Protection: no. Furthermore, the peak pulse power of the product is 150w. Moreover, it corresponds to eguard0522, a base product number of the product. The product is designated with the ear99 code number.

pdf icon
EGUARD0522P(Datasheets)
pdf icon
SMC Diodes RoHS(Environmental Information)
pdf icon
SMC Diodes REACH 205(Environmental Information)
