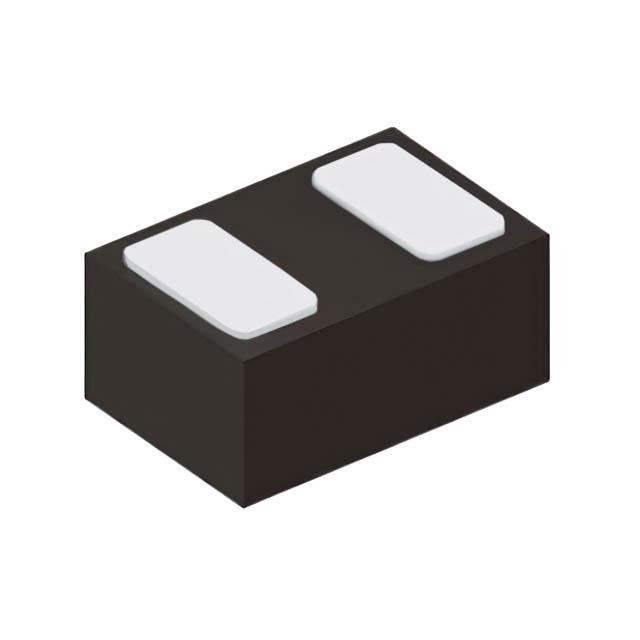

Panjit International Inc. PEC2305S1Q_R1_00001
Product Information
Voltage - Clamping (Max) @ Ipp:
15V
HTSUS:
8541.10.0080
RoHS Status:
ROHS3 Compliant
Operating Temperature:
-55°C ~ 150°C (TJ)
Package / Case:
0201 (0603 Metric)
Type:
Zener
REACH Status:
REACH Unaffected
Voltage - Breakdown (Min):
5.5V
Applications:
General Purpose
Package:
Tape & Reel (TR)
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Bidirectional Channels:
1
standardLeadTime:
14 Weeks
Current - Peak Pulse (10/1000µs):
2A (8/20µs)
Voltage - Reverse Standoff (Typ):
5V (Max)
Mounting Type:
Surface Mount
Series:
-
Supplier Device Package:
DFN0603-2
Capacitance @ Frequency:
3.5pF @ 1MHz (Max)
Power Line Protection:
No
Power - Peak Pulse:
-
Base Product Number:
PEC2305
ECCN:
EAR99
Checking for live stock
FAQs
Yes. You can also search PEC2305S1Q_R1_00001 on website for other similar products.
We accept all major payment methods for all products including ET22763770. Please check your shopping cart at the time of order.
You can order Panjit International Inc. brand products with PEC2305S1Q_R1_00001 directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in TVS Diodes category are shipped in lowest possible time.
You will get a confirmation email regarding your order of Panjit International Inc. PEC2305S1Q_R1_00001. You can also check on our website or by contacting our customer support team for further order details on Panjit International Inc. PEC2305S1Q_R1_00001.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET22763770 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "Panjit International Inc." products on our website by using Enrgtech's Unique Manufacturing Part Number ET22763770.
Yes. We ship PEC2305S1Q_R1_00001 Internationally to many countries around the world.
This is manufactured by Panjit International Inc.. The manufacturer part number is PEC2305S1Q_R1_00001. The maximum clamping voltage is 15v. It is assigned with possible HTSUS value of 8541.10.0080. The product is rohs3 compliant. The product has -55°c ~ 150°c (tj) operating temperature range. Moreover, the product comes in 0201 (0603 metric). It comes in zener configuration. In addition, it is reach unaffected. The minimum breakdown voltage is 5.5v. The product is widely employed in general purpose. It is shipped in tape & reel (tr) package . Its typical moisture sensitivity level is 1 (unlimited). The product has 1 bidirectional channels. It has a long 14 weeks standard lead time. The peak pulse of the product is given as 2a (8/20µs). Provide with the typical reverse standoff voltage of 5v (max). The product is available in surface mount configuration. dfn0603-2 is the supplier device package value. It has a nominal capacitance and frequency values of 3.5pf @ 1mhz (max). Power Line Protection: no. Moreover, it corresponds to pec2305, a base product number of the product. The product is designated with the ear99 code number.
