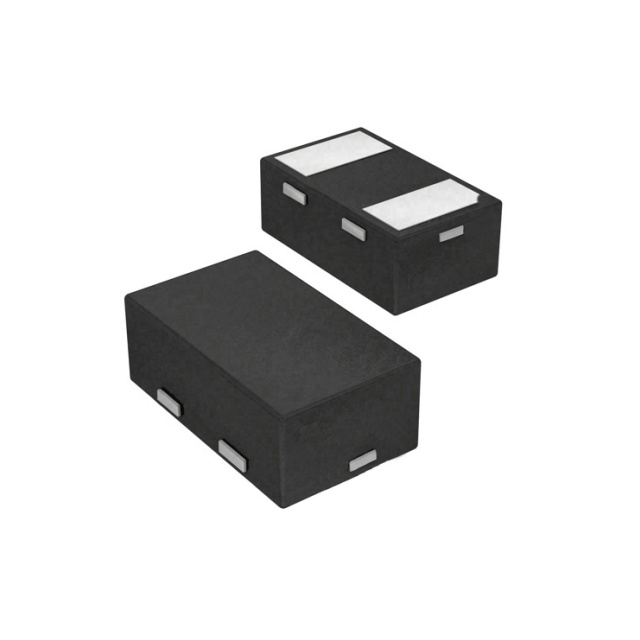

WeEn Semiconductors ESDHD05UFX
Product Information
Voltage - Clamping (Max) @ Ipp:
16V
HTSUS:
8541.10.0080
Operating Temperature:
-55°C ~ 150°C (TJ)
Package / Case:
0402 (1006 Metric)
Type:
Zener
Voltage - Breakdown (Min):
6V
Applications:
General Purpose
Package:
Tape & Reel (TR)
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Unidirectional Channels:
1
standardLeadTime:
20 Weeks
Current - Peak Pulse (10/1000µs):
20A (8/20µs)
Voltage - Reverse Standoff (Typ):
5V (Max)
Mounting Type:
Surface Mount
Series:
-
Supplier Device Package:
DFN1006-2
Capacitance @ Frequency:
150pF @ 1MHz
Power Line Protection:
No
Power - Peak Pulse:
320W
Base Product Number:
ESDHD05
ECCN:
EAR99
Checking for live stock
FAQs
Yes. You can also search ESDHD05UFX on website for other similar products.
We accept all major payment methods for all products including ET22623794. Please check your shopping cart at the time of order.
You can order WeEn Semiconductors brand products with ESDHD05UFX directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in TVS Diodes category are shipped in lowest possible time.
You will get a confirmation email regarding your order of WeEn Semiconductors ESDHD05UFX. You can also check on our website or by contacting our customer support team for further order details on WeEn Semiconductors ESDHD05UFX.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET22623794 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "WeEn Semiconductors" products on our website by using Enrgtech's Unique Manufacturing Part Number ET22623794.
Yes. We ship ESDHD05UFX Internationally to many countries around the world.
This is manufactured by WeEn Semiconductors. The manufacturer part number is ESDHD05UFX. The maximum clamping voltage is 16v. It is assigned with possible HTSUS value of 8541.10.0080. The product has -55°c ~ 150°c (tj) operating temperature range. Moreover, the product comes in 0402 (1006 metric). It comes in zener configuration. The minimum breakdown voltage is 6v. The product is widely employed in general purpose. It is shipped in tape & reel (tr) package . Its typical moisture sensitivity level is 1 (unlimited). It has 1 unidirectional channels. It has a long 20 weeks standard lead time. The peak pulse of the product is given as 20a (8/20µs). Provide with the typical reverse standoff voltage of 5v (max). The product is available in surface mount configuration. dfn1006-2 is the supplier device package value. It has a nominal capacitance and frequency values of 150pf @ 1mhz. Power Line Protection: no. Furthermore, the peak pulse power of the product is 320w. Moreover, it corresponds to esdhd05, a base product number of the product. The product is designated with the ear99 code number.
