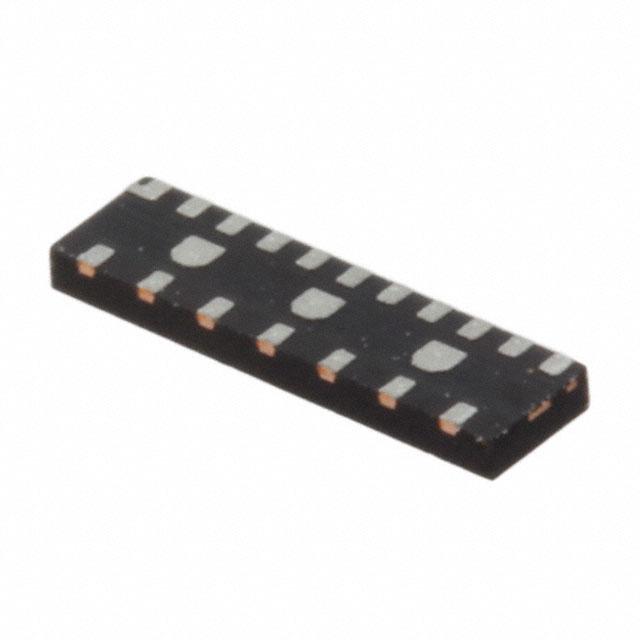

onsemi ESD8040MUTAG
Product Information
Voltage - Clamping (Max) @ Ipp:
12V (Typ)
HTSUS:
8541.10.0080
RoHS Status:
ROHS3 Compliant
Operating Temperature:
-55°C ~ 125°C (TJ)
Package / Case:
18-UFDFN Exposed Pad
Type:
Zener
edacadModel:
ESD8040MUTAG Models
REACH Status:
REACH Unaffected
Voltage - Breakdown (Min):
5.5V
Applications:
HDMI
edacadModelUrl:
/en/models/4810859
Package:
Tape & Reel (TR)
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Unidirectional Channels:
14
standardLeadTime:
9 Weeks
Current - Peak Pulse (10/1000µs):
16A (100ns)
Voltage - Reverse Standoff (Typ):
3.3V (Max)
Mounting Type:
Surface Mount
Series:
-
Supplier Device Package:
18-UDFN (5.5x1.5)
Capacitance @ Frequency:
0.3pF @ 1MHz
Power Line Protection:
No
Power - Peak Pulse:
-
Base Product Number:
ESD8040
ECCN:
EAR99
Checking for live stock
FAQs
Yes. You can also search ESD8040MUTAG on website for other similar products.
We accept all major payment methods for all products including ET21514667. Please check your shopping cart at the time of order.
You can order onsemi brand products with ESD8040MUTAG directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in TVS Diodes category are shipped in lowest possible time.
You will get a confirmation email regarding your order of onsemi ESD8040MUTAG. You can also check on our website or by contacting our customer support team for further order details on onsemi ESD8040MUTAG.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET21514667 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "onsemi" products on our website by using Enrgtech's Unique Manufacturing Part Number ET21514667.
Yes. We ship ESD8040MUTAG Internationally to many countries around the world.
This is manufactured by onsemi. The manufacturer part number is ESD8040MUTAG. The maximum clamping voltage is 12v (typ). It is assigned with possible HTSUS value of 8541.10.0080. The product is rohs3 compliant. The product has -55°c ~ 125°c (tj) operating temperature range. Moreover, the product comes in 18-ufdfn exposed pad. It comes in zener configuration. In addition, it is reach unaffected. The minimum breakdown voltage is 5.5v. The product is widely employed in hdmi. It is shipped in tape & reel (tr) package . Its typical moisture sensitivity level is 1 (unlimited). It has 14 unidirectional channels. It has a long 9 weeks standard lead time. The peak pulse of the product is given as 16a (100ns). Provide with the typical reverse standoff voltage of 3.3v (max). The product is available in surface mount configuration. 18-udfn (5.5x1.5) is the supplier device package value. It has a nominal capacitance and frequency values of 0.3pf @ 1mhz. Power Line Protection: no. Moreover, it corresponds to esd8040, a base product number of the product. The product is designated with the ear99 code number.
