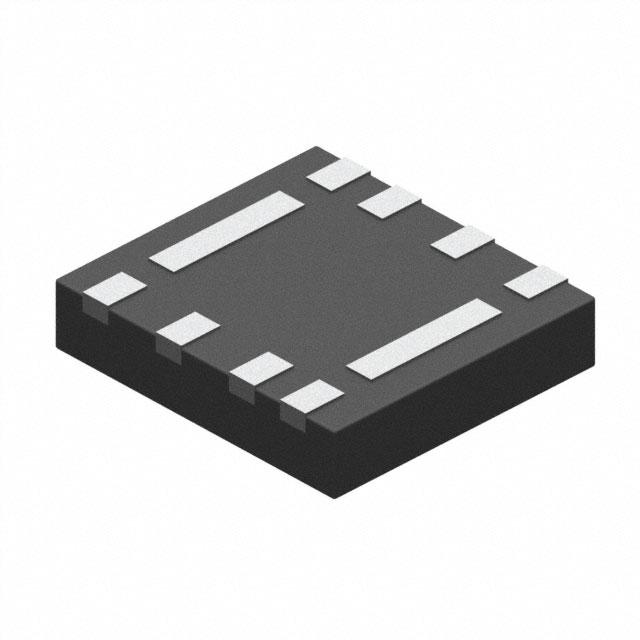

This is Quad-Element Uni-Directional ESD Protection Array 8-Pin UDFN manufactured by onsemi. The manufacturer part number is NSP8814MUTAG. It is supplied with 15v of maximum clamping voltage. It also has 35a maximum peak pulse current. The given dimensions of the product include 2.2 x 2 x 0.5mm. The product is available in surface mount configuration. It provides a 5pf of capacitance value. The product has a maximum 500na of reverse leakage current. It has a maximum operating temperature of +125 °c. It harbours a 3.2v of minimum breakdown voltage. While is configured as uni-directional. In addition, the height is 0.5mm. Furthermore, the product is 2mm wide. Its accurate length is 2.2mm. The package is a sort of udfn. It consists of 4 elements per chip. Whereas, the minimum operating temperature of the product is -55 °c. ESD Protected - yes. It has about [Working Voltage] working voltage . The diode features a array configuration. It contains 8 pins. In addition, it has 1ma test current. The maximum clamping voltage is 15v. It is assigned with possible HTSUS value of 8541.10.0080. The product is rohs3 compliant. The product has -55°c ~ 125°c (tj) operating temperature range. Moreover, the product comes in 8-udfn exposed pad. It comes in steering (rail to rail) configuration. In addition, it is reach unaffected. The minimum breakdown voltage is 3.2v. The product is widely employed in ethernet. It is shipped in tape & reel (tr) package . Its typical moisture sensitivity level is 1 (unlimited). It has 4 unidirectional channels. The peak pulse of the product is given as 35a (8/20µs). Provide with the typical reverse standoff voltage of 3v (max). 8-udfn (2.2x2) is the supplier device package value. It has a nominal capacitance and frequency values of 5pf @ 1mhz (max). Power Line Protection: no. Moreover, it corresponds to nsp8814, a base product number of the product. The product is designated with the ear99 code number.
Datasheet(Technical Reference)
ESD Control Selection Guide V1(Technical Reference)
Mult DEV EOL 22/Dec/2023(PCN Obsolescence/ EOL)
Reinstatement 22/Jun/2023(PCN Obsolescence/ EOL)
NSP8814, NSP8818(Datasheets)
onsemi RoHS(Environmental Information)
onsemi REACH(Environmental Information)
