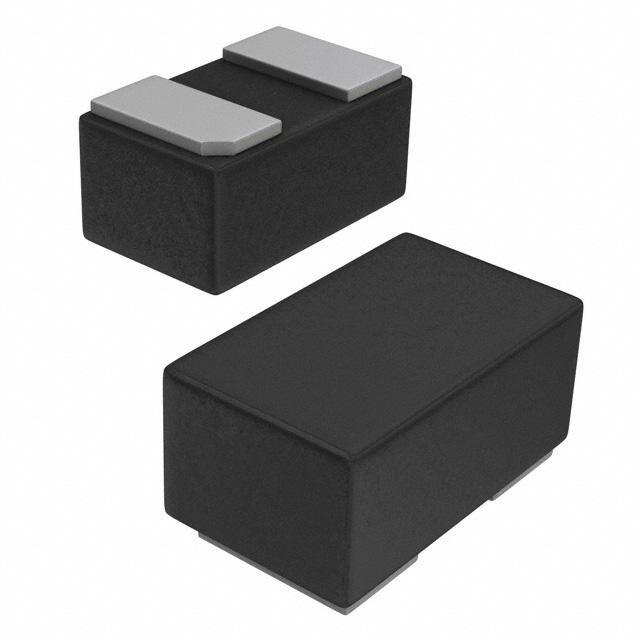

SMC Diode Solutions SESD5V0V1BLATR

Enrgtech Part No: ET18306566
|
Manufacturer Part No:
SESD5V0V1BLATR
|
Manufacturer: SMC Diode Solutions

(0)

Product Information

The SMC Diode Solutions SESD5V0V1BLATR is a surface-mount diode for electrostatic discharge (ESD) protection. It has a low clamping voltage of 5V and is designed to safeguard electronic components from transient voltage events, and is conveniently packaged for easy surface mount installation.

Voltage - Clamping (Max) @ Ipp:

12.5V

HTSUS:

8541.10.0080

RoHS Status:

ROHS3 Compliant

Operating Temperature:

150°C (TJ)

Package / Case:

0402 (1006 Metric)

Type:

Zener

REACH Status:

REACH Affected

Voltage - Breakdown (Min):

5.8V

Applications:

General Purpose

Package:

Tape & Reel (TR)

Moisture Sensitivity Level (MSL):

1 (Unlimited)

Bidirectional Channels:

Checking for live stock

A diode made primarily to guard against electrostatic discharge (ESD) is the SESD5V0V1BLATR from SMC Diode Solutions. It is a bidirectional diode that can withstand spikes in both positive and negative voltage. The diode is housed in a DFN10 (Dual Flat No-Lead) package, which offers superior thermal and electrical performance. Its DFN10 packaging, which offers good thermal and electrical performance, makes it appropriate for a variety of applications.

Significant Benefits and Features of SMC Diode Solutions SESD5V0V1BLATR Include:

ESD Protection: Electrostatic discharge (ESD) is typical in electronic devices, and it can cause damage to sensitive components. This diode is developed to shield ESD by diverting the excess energy from the ESD event away from the protected circuitry. It has a breakdown voltage of 5V, which means it can handle voltage spikes up to 5V without conducting.
Bidirectional Protection: The bidirectional nature of the SESD5V0V1BLATR diode allows it to protect against both positive and negative voltage spikes. This is important in applications where the polarity of the ESD event may vary. The diode can shunt the excess energy to the ground, preventing it from reaching the sensitive components.
DFN10 Package: The SESD5V0V1BLATR diode is packaged in a DFN10 package. DFN packages are known for their small size, low profile, and excellent thermal properties. The package has ten leads arranged in a dual flat configuration, allowing for efficient heat dissipation. The small size of the box also makes it suitable for space-constrained applications.

Application Areas of SMC Diode Solutions SESD5V0V1BLATR:

The SESD5V0V1BLATR diode finds applications in various industries, including consumer electronics, automotive, telecommunications, and industrial equipment. It can protect sensitive device circuits, including smartphones, tablets, automotive control units, communication modules, etc.
