Dimensions:
4.6 x 2.9 x 1.05mm
Direction Type:
Uni-Directional
Capacitance:
150pF
Height:
1.05mm
Diode Configuration:
Single
Test Current:
1mA
Maximum Peak Pulse Current:
47A
Minimum Breakdown Voltage:
25.7V
ESD Voltage:
30kV
Maximum Reverse Leakage Current:
1µA

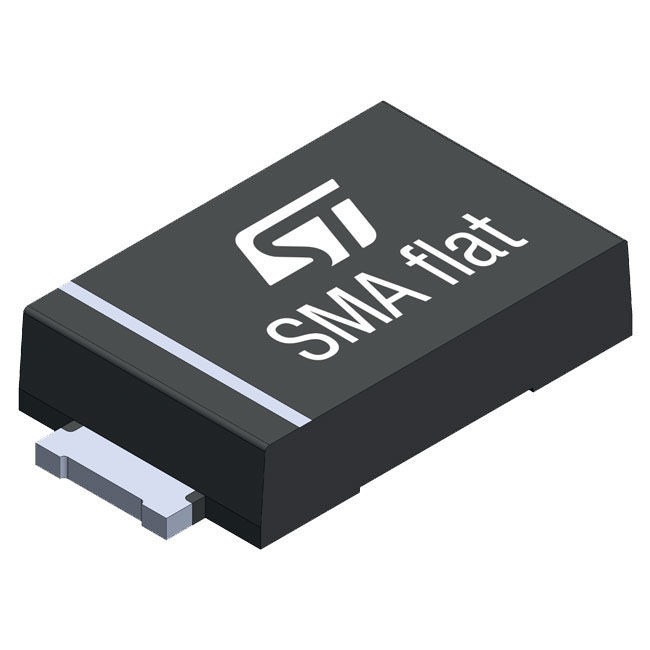

Package Type:
SMA Flat
Number of Elements per Chip:
1
Maximum Operating Temperature:
+175 °C
ESD Protection:
Yes
Length:
4.6mm
Pin Count:
2
Peak Pulse Power Dissipation:
400W
Maximum Reverse Stand-off Voltage:
23V
Mounting Type:
Surface Mount
Width:
2.9mm
Maximum Clamping Voltage:
49.2V
Working Voltage:
23V
Minimum Operating Temperature:
-55 °C
Manufacturer Standard Lead Time:
39 Weeks
Base Part Number:
SMA4F23
Detailed Description:
49.2V Clamp 10.6A Ipp Tvs Diode Surface Mount SMAflat
Mounting Type:
Surface Mount
Series:
SMA4F, TRANSIL™
Voltage - Clamping (Max) @ Ipp:
49.2V
Supplier Device Package:
SMAflat
Voltage - Breakdown (Min):
25.7V
Unidirectional Channels:
1
Packaging:
Cut Tape (CT)
Applications:
General Purpose
Operating Temperature:
-55°C ~ 175°C (TJ)
Voltage - Reverse Standoff (Typ):
23V
Customer Reference:
Package / Case:
DO-221AC, SMA Flat Leads
Power Line Protection:
No
Power - Peak Pulse:
400W
Type:
Zener
Current - Peak Pulse (10/1000µs):
10.6A
Manufacturer:
STMicroelectronics
