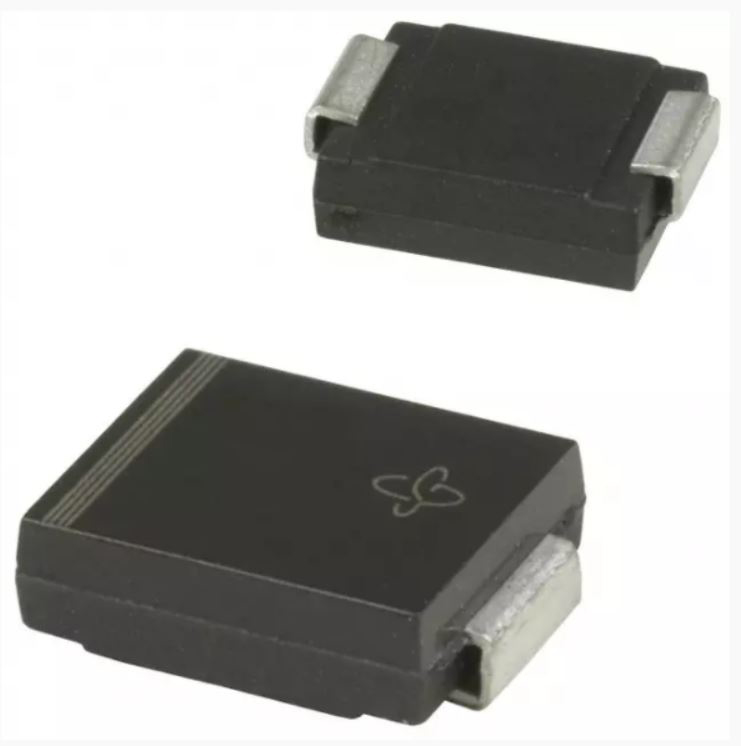

Vishay SMBJ26CA-E3/52, Bi-Directional TVS Diode, 600W, 2-Pin DO-214AA

SMBJ26CA-E3-52 Vishay SMBJ26CA-E3/52, Bi-Directional TVS Diode, 600W, 2-Pin DO-214AA
Vishay

Product Information

Maximum Peak Pulse Current:
14.3A
Maximum Reverse Stand-off Voltage:
26V
Dimensions:
4.57 x 3.94 x 2.24mm
Mounting Type:
Surface Mount
Direction Type:
Bi-Directional
Maximum Operating Temperature:
+150 °C
Maximum Reverse Leakage Current:
1µA
Minimum Breakdown Voltage:
28.9V
Peak Pulse Power Dissipation:
600W
Height:
2.24mm
Width:
3.94mm
Length:
4.57mm
Package Type:
DO-214AA (SMB)
Number of Elements per Chip:
1
Minimum Operating Temperature:
-55 °C
Maximum Clamping Voltage:
42.1V
Diode Configuration:
Single
Pin Count:
2
Test Current:
1mA
RoHs Compliant
Checking for live stock

This is Bi-Directional TVS Diode 600W 2-Pin DO-214AA manufactured by Vishay. The manufacturer part number is SMBJ26CA-E3/52. It also has 14.3a maximum peak pulse current. While the maximised reverse stand-off voltage includes 26v. The given dimensions of the product include 4.57 x 3.94 x 2.24mm. The product is available in surface mount configuration. While is configured as bi-directional. It has a maximum operating temperature of +150 °c. The product has a maximum 1µa of reverse leakage current. It harbours a 28.9v of minimum breakdown voltage. It has 600w of peak pulse power dissipation. In addition, the height is 2.24mm. Furthermore, the product is 3.94mm wide. Its accurate length is 4.57mm. The package is a sort of do-214aa (smb). It consists of 1 elements per chip. Whereas, the minimum operating temperature of the product is -55 °c. It is supplied with 42.1v of maximum clamping voltage. The diode features a single configuration. It contains 2 pins. In addition, it has 1ma test current.
