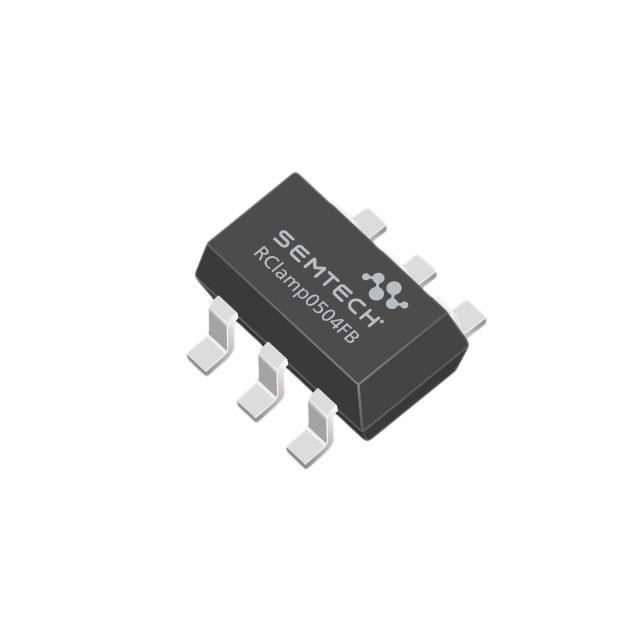

Semtech Corporation RCLAMP0504FBTCT

RCLAMP0504FBTCT Semtech Corporation
Semtech Corporation

Product Information

Voltage - Clamping (Max) @ Ipp:
17.5V
HTSUS:
8541.10.0080
RoHS Status:
RoHS Compliant
Operating Temperature:
-55°C ~ 125°C (TJ)
Package / Case:
6-TSSOP, SC-88, SOT-363
Type:
Steering (Rail to Rail)
REACH Status:
REACH Unaffected
Voltage - Breakdown (Min):
6V
edacadModel:
RCLAMP0504FBTCT Models
Applications:
USB
edacadModelUrl:
/en/models/7806967
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Unidirectional Channels:
4
standardLeadTime:
13 Weeks
Current - Peak Pulse (10/1000µs):
28A (8/20µs)
Voltage - Reverse Standoff (Typ):
5V (Max)
Mounting Type:
Surface Mount
Series:
RailClamp®
Supplier Device Package:
SC-70-6
Packaging:
Tape & Reel (TR)
Capacitance @ Frequency:
1.1pF @ 1MHz
Power Line Protection:
Yes
Power - Peak Pulse:
500W
Base Product Number:
RCLAMP0504
ECCN:
EAR99
Checking for live stock

This is manufactured by Semtech Corporation. The manufacturer part number is RCLAMP0504FBTCT. The maximum clamping voltage is 17.5v. It is assigned with possible HTSUS value of 8541.10.0080. The product is rohs compliant. The product has -55°c ~ 125°c (tj) operating temperature range. Moreover, the product comes in 6-tssop, sc-88, sot-363. It comes in steering (rail to rail) configuration. In addition, it is reach unaffected. The minimum breakdown voltage is 6v. The product is widely employed in usb. Its typical moisture sensitivity level is 1 (unlimited). It has 4 unidirectional channels. It has a long 13 weeks standard lead time. The peak pulse of the product is given as 28a (8/20µs). Provide with the typical reverse standoff voltage of 5v (max). The product is available in surface mount configuration. The product railclamp®, is a highly preferred choice for users. sc-70-6 is the supplier device package value. In addition, tape & reel (tr) is the available packaging type of the product. It has a nominal capacitance and frequency values of 1.1pf @ 1mhz. Power Line Protection: yes. Furthermore, the peak pulse power of the product is 500w. Moreover, it corresponds to rclamp0504, a base product number of the product. The product is designated with the ear99 code number.
