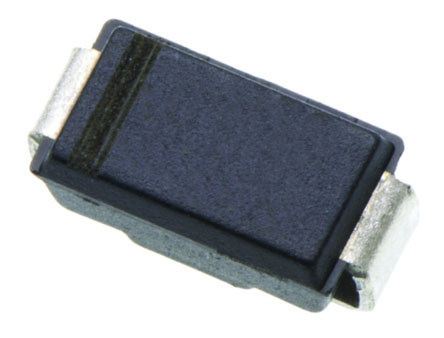

Bourns SMAJ12A, Uni-Directional TVS Diode, 400W, 2-Pin DO-214AC

  • Enrgtech Part No: ET13859215
  • |
  • Manufacturer Part No:

    SMAJ12A

  • |
  • Manufacturer: Bourns
SMAJ12A Bourns , Uni-Directional TVS Diode, 400W, 2-Pin DO-214AC
Bourns

Product Information

Maximum Peak Pulse Current:
35A
Maximum Reverse Stand-off Voltage:
12V
Dimensions:
4.57 x 2.92 x 2.42mm
Mounting Type:
Surface Mount
Direction Type:
Uni-Directional
Maximum Operating Temperature:
+150 °C
Minimum Breakdown Voltage:
13.3V
ESD Protection:
Yes
Peak Pulse Power Dissipation:
400W
Height:
2.42mm
Width:
2.92mm
Length:
4.57mm
Package Type:
DO-214AC (SMA)
Number of Elements per Chip:
1
Minimum Operating Temperature:
-55 °C
Maximum Reverse Leakage Current:
5µA
Maximum Clamping Voltage:
3.5V
Diode Configuration:
Single
Pin Count:
2
Test Current:
1mA
RoHs Compliant
Checking for live stock

This is Uni-Directional TVS Diode 400W 2-Pin DO-214AC manufactured by Bourns. The manufacturer part number is SMAJ12A. It also has 35a maximum peak pulse current. While the maximised reverse stand-off voltage includes 12v. The given dimensions of the product include 4.57 x 2.92 x 2.42mm. The product is available in surface mount configuration. While is configured as uni-directional. It has a maximum operating temperature of +150 °c. It harbours a 13.3v of minimum breakdown voltage. ESD Protected - yes. It has 400w of peak pulse power dissipation. In addition, the height is 2.42mm. Furthermore, the product is 2.92mm wide. Its accurate length is 4.57mm. The package is a sort of do-214ac (sma). It consists of 1 elements per chip. Whereas, the minimum operating temperature of the product is -55 °c. The product has a maximum 5µa of reverse leakage current. It is supplied with 3.5v of maximum clamping voltage. The diode features a single configuration. It contains 2 pins. In addition, it has 1ma test current.

pdf icon
SMAJ Transient Voltage Suppressor Diode Series(Technical Reference)
pdf icon
ESD Control Selection Guide V1(Technical Reference)
