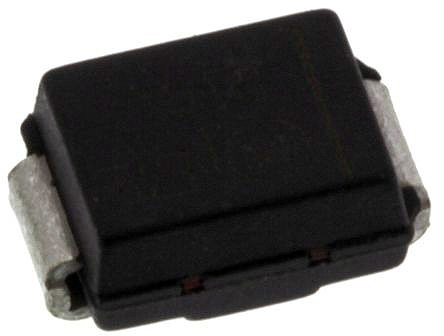

Diodes Inc SMBJ20A-13-F, Uni-Directional TVS Diode, 600W, 2-Pin DO-214AA
Product Information
Maximum Peak Pulse Current:
18.5A
Maximum Reverse Stand-off Voltage:
20V
Dimensions:
4.57 x 3.94 x 2.42mm
Mounting Type:
Surface Mount
Direction Type:
Uni-Directional
Surge Current Rating:
100A
Maximum Operating Temperature:
+150 °C
Maximum Reverse Leakage Current:
5µA
Minimum Breakdown Voltage:
22.2V
Peak Pulse Power Dissipation:
600W
Height:
2.42mm
Width:
3.94mm
Length:
4.57mm
Package Type:
DO-214AA (SMB)
Number of Elements per Chip:
1
Minimum Operating Temperature:
-55 °C
Maximum Clamping Voltage:
32.4V
Diode Configuration:
Single
Pin Count:
2
Test Current:
1mA
Checking for live stock
FAQs
Yes. You can also search SMBJ20A-13-F on website for other similar products.
We accept all major payment methods for all products including ET13855622. Please check your shopping cart at the time of order.
You can order DiodesZetex brand products with SMBJ20A-13-F directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in TVS Diodes category are shipped in lowest possible time.
You will get a confirmation email regarding your order of Diodes Inc SMBJ20A-13-F, Uni-Directional TVS Diode, 600W, 2-Pin DO-214AA. You can also check on our website or by contacting our customer support team for further order details on Diodes Inc SMBJ20A-13-F, Uni-Directional TVS Diode, 600W, 2-Pin DO-214AA.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET13855622 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "DiodesZetex" products on our website by using Enrgtech's Unique Manufacturing Part Number ET13855622.
Yes. We ship SMBJ20A-13-F Internationally to many countries around the world.
This is Diodes Inc Uni-Directional TVS Diode 600W 2-Pin DO-214AA manufactured by DiodesZetex. The manufacturer part number is SMBJ20A-13-F. It also has 18.5a maximum peak pulse current. While the maximised reverse stand-off voltage includes 20v. The given dimensions of the product include 4.57 x 3.94 x 2.42mm. The product is available in surface mount configuration. While is configured as uni-directional. It has about 100a surge current rating . It has a maximum operating temperature of +150 °c. The product has a maximum 5µa of reverse leakage current. It harbours a 22.2v of minimum breakdown voltage. It has 600w of peak pulse power dissipation. In addition, the height is 2.42mm. Furthermore, the product is 3.94mm wide. Its accurate length is 4.57mm. The package is a sort of do-214aa (smb). It consists of 1 elements per chip. Whereas, the minimum operating temperature of the product is -55 °c. It is supplied with 32.4v of maximum clamping voltage. The diode features a single configuration. It contains 2 pins. In addition, it has 1ma test current.
